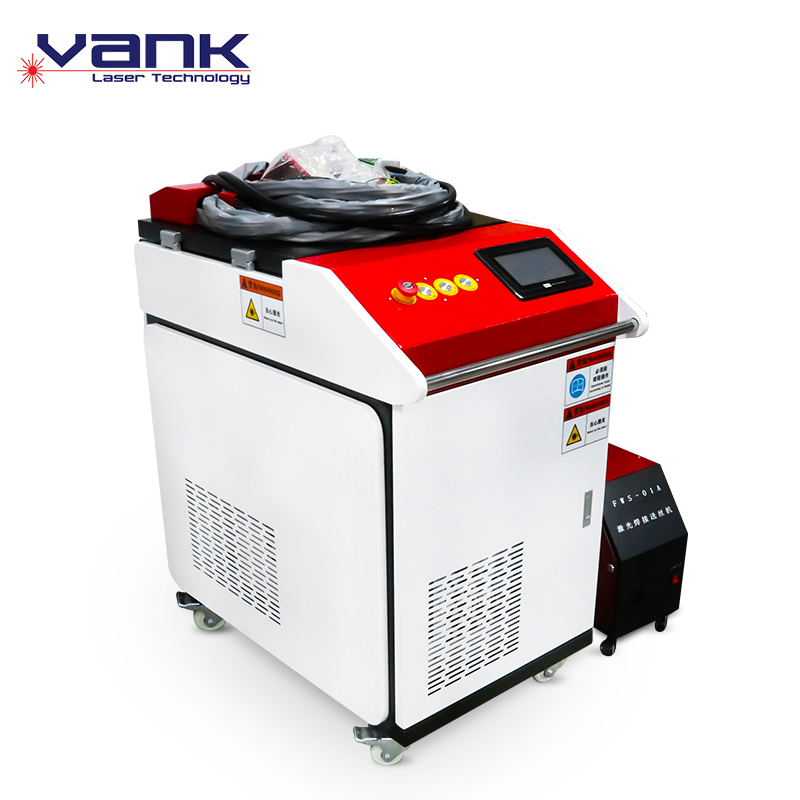

Vanklaser-3 in 1 Fiber Laser Welding Cleaning Cutting Machine

Carbon steel
Stainless steel
sharethis sharing button

3 in1 Handheld Fiber Laser Welding Machine

stainless steel, steel plate, and galvanized sheet....




• Applicable materials, the scope of application covers almost most industrial industries. It is widely used in complex industries such as cabinets, kitchens and bathrooms, stair elevators, shelves, ovens, stainless steel door and window guardrails, distribution boxes, stainless steel furniture, industry advertisements, lighting and sheet metal chassis machines. Irregular welding procedures. The hand-held laser welding machine adopts a hand-held swing welding head, which is flexible and simple to operate and does not require professional welder skills. It is suitable for small batch and large batch production and processing. It is widely used in sheet metal processing, cabinet kitchen utensils, chassis cabinets, stair handrails, elevator escalators, display shelves, Doors and windows, advertising models, stainless steel products and many other industries.


Laser Source

 Raycus/MAX/IPG/JPT, multiple

 choice. Different brands, different

 laser power are available. The

 higher power, the faster marking

 speed.Also supply CO2 laser, UV

 laser, MOPA laser, green laser, etc.


Auto Wire Feeder

 Our wire feeding system support

 max 3.0mm diameter metal wire,

 and with the double motor inside

 the machine case, which give the

 more stable support for the

 machine working.


Laser Head

 Handheld light Laser Welding head

 only with 800g weight, which makes

 operator work more longer time per

 day. There have doubleprotective

 lens, and theTemperature Sensor

 inside the laser head, which give

 the biggest protection.


Nozzle and Lens

 Customized special nozzle for

 meet different work. Help use

 get the better welding effect.

 Whole machine very easy to

 learn, oneperson only need

 10 minutes to become the

 skilled worker.


Control Switch

 Power switch: give the electrical power

 on for the whole machine.   System

 switch: give the start for the machine

 control system. Emergency Stop: use

 this to protect the operator from the

 danger during the working.


water chiller

 More green and energy-saving,

 the product uses external

 circulatingwater to match the

 interior of the chiller for efficient

 cooling,and the smaller volume

 brings greater cooling capacity.



The handheld laser gun can weld, clean, and cut with an intelligent controller for easy-to-use, flexible processing, easy carry, small size,low cost, and no consumables.One machine, three functions: welding, cleaning and cutting,the conversion of each function is convenient and simple.


It can avoid the shackles of wires to fit more sites and has good dustproof and anti-condensation effects.


The built-in parameter adjustment range is large and easy to start with one key.


The JPT, Raycus, and MAX lasers are optional and feature higher photoelectric conversion efficiency, lower error rate, low power consumption, and maintenance-free and compact construction. Low error rate, low power consumption, maintenance-free and compact.

Fiber Laser Welds

• Laser Weld Carbon Steel

• Laser Weld Stainless Steel

• Laser Weld Aluminum and more


- Welding materials: stainless steel/carbon steel/aluminum alloy/copper/galvanized sheet and other materials can be welded.

- Welding form: Various forms of laser welding such as splicing, lap joint and corner joint can be realized.

Using environment: Indoor or outdoor welding work, suitable for laser welding of various complex sheet metal/hardware parts.

Laser welding: fast welding speed, small deformation, beautiful weld seam, no need to polish after welding, saving manpower.

Advantages: simple operation, flexible and convenient, no need for professional welding knowledge, you can directly operate it.


Laser wavelength 1064nm
fiber wavelength 50um
fiber length 10m
Galvanometer Width 0.5-6mm
welding speed 0-120mm/sec
Welding material thickness ≤5mm
Welding gap requirements ≤0.5mm
Operating Voltage 220V±10%
Working Mode Welding, Cutting and Cleaning

Laser Welding Capacity

Material Thickness Single side weld Thickness Double side weld Thickness Wire weld
Stainless steel 3mm 3mm 2.5mm
Galvanized steel 3mm 6mm 2.5mm
Mild steel 3mm 6mm 2.5mm
Titanium alloy 3mm 6mm 2.5mm
Aluminum 2mm 4mm 1.8mm
Copper 1mm 2mm 0.8mm

Company Profile

Anhui Codos Laser Technology Development Co., Ltd. is a high-tech enterprise with years of experience in R&D, production, sales and technical maintenance in the laser equipment industry. With the professional laser technology as the backing, the company constantly absorbs advanced technology and design concept, and produces and sells laser equipment suitable for various industrial automation production needs.Our company's main products are optical fiber laser cutting machine, fiber laser marking machine, CO2 laser engraving&cutting machine. All products through the CE certification, safe and reliable product quality. In addition to providing standardized products for our customers, we can also provide customized solutions to meet the needs of different customers.Our laser equipment are widely used in industries of electronic, medical, sheet metal, furniture, advertising, craft gifts, architectural model, industrial mold, luxury, decoration, identification, clothing, leather and other industries.We make the high quality advanced machines, we are providing the best after-sale service in China. And we are also offering the most competitive price to all of the customers. "VANK" is known by more and more people. At present, our products have been exported to many countries and regions such as Europe, South America, North America and so on. We have enjoyed the mutual benefit and will move on, and we hope to establish a long term business relations with more and more oversea customers.

photobank (1)









Product packaging



1.I am looking for CO2 laser machine, any recommendation?
A: Hi, there. Thank you for your concern about our laser cutting machine. It's essential to mention us about your cutting requests (materials, thickness, application and your expectation), our sales experts provides customized consulting service in term of your demand.
2.When I got this machine, but I don't know how to use it. What should I do?
A:We will send video and English manual with the machine. If you still have some doubts, we can talk by telephone or skype and e-mail.
3.How can I get the sample to check you quality ?
A:If you want to marking sample to check the quality, we can help you do this. first you need to provide the logo or design to us, free mark samples can be provided.
4.Do the machine can be customized according my requirements?
A:Sure,we have a strong technical team and have rich experience. Our goal is to make you satisfied.
5:Can you arrange the shipment for me?
A:We can arrange the shipment for our clients accordingly by sea and air. Trading terms FOB, CIF, EXW are available.
6:Why should you choose us?
We have the high attention and faster response of post-sales in 24hrs. We offer two years-warranty for all products to ensure their activities and after-sales.
