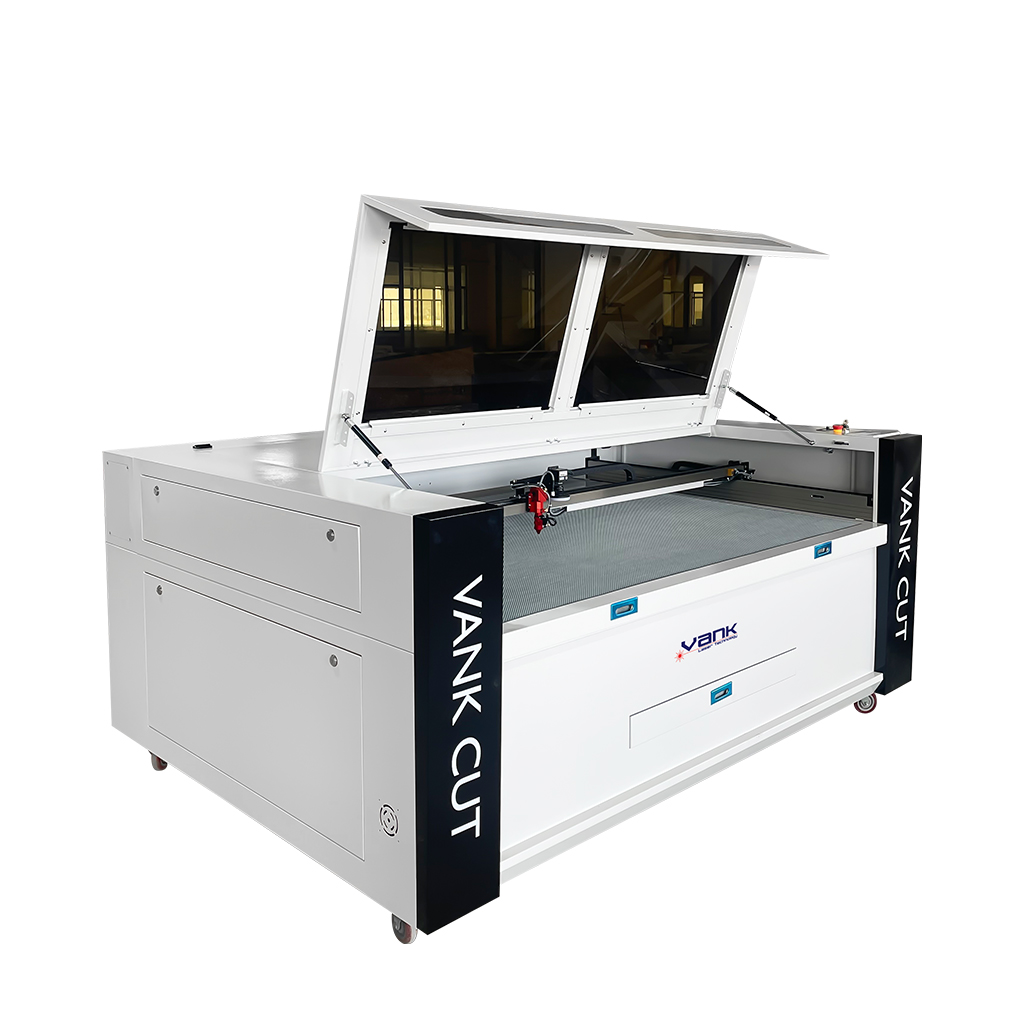

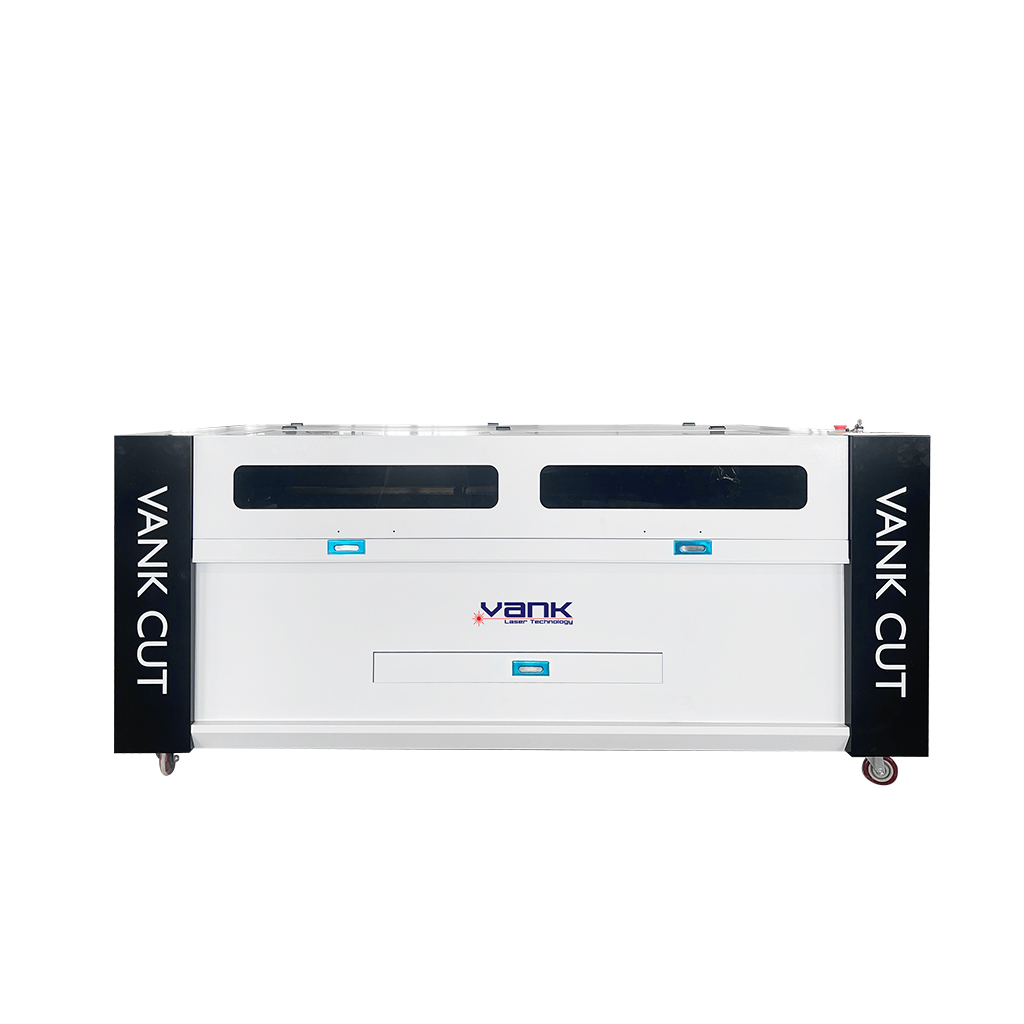

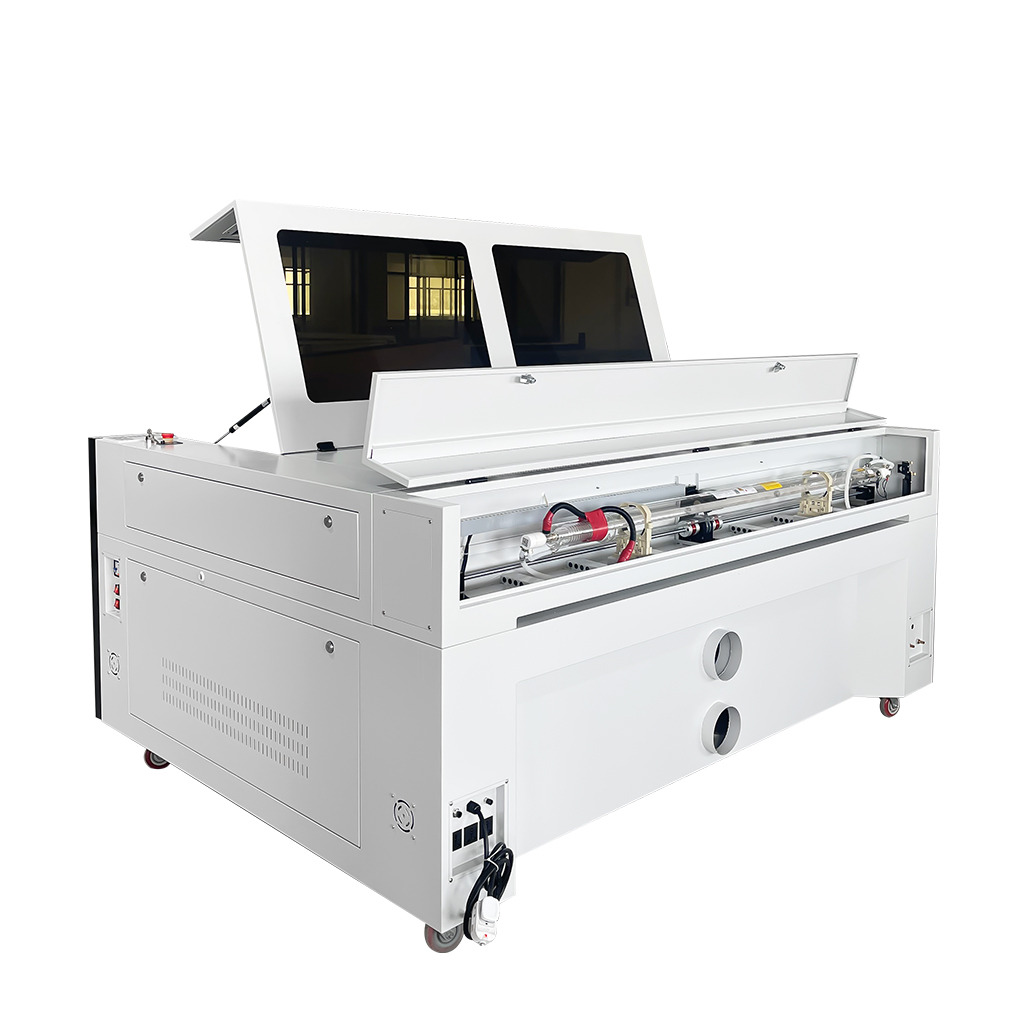

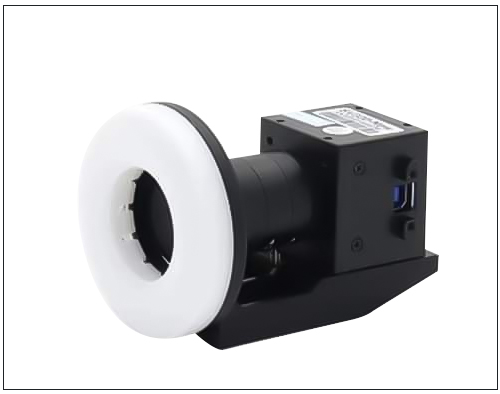

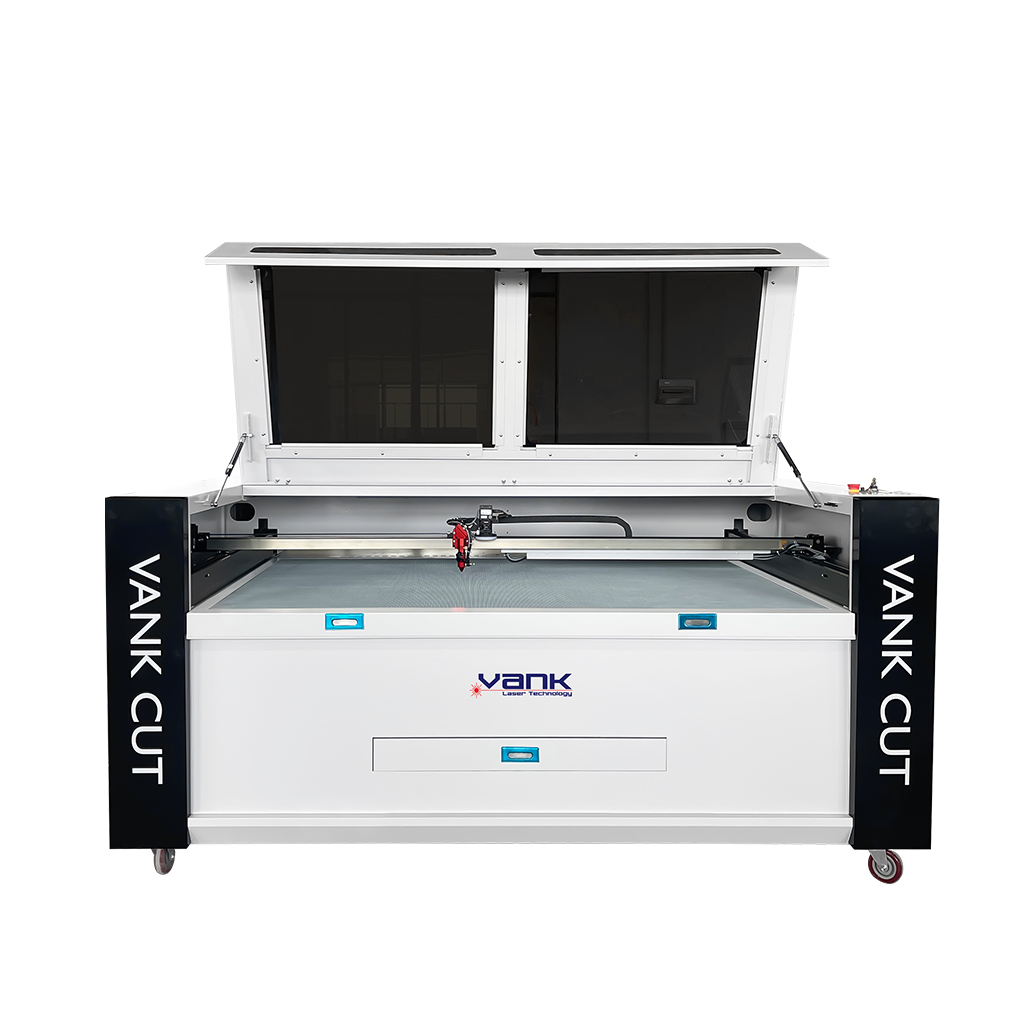

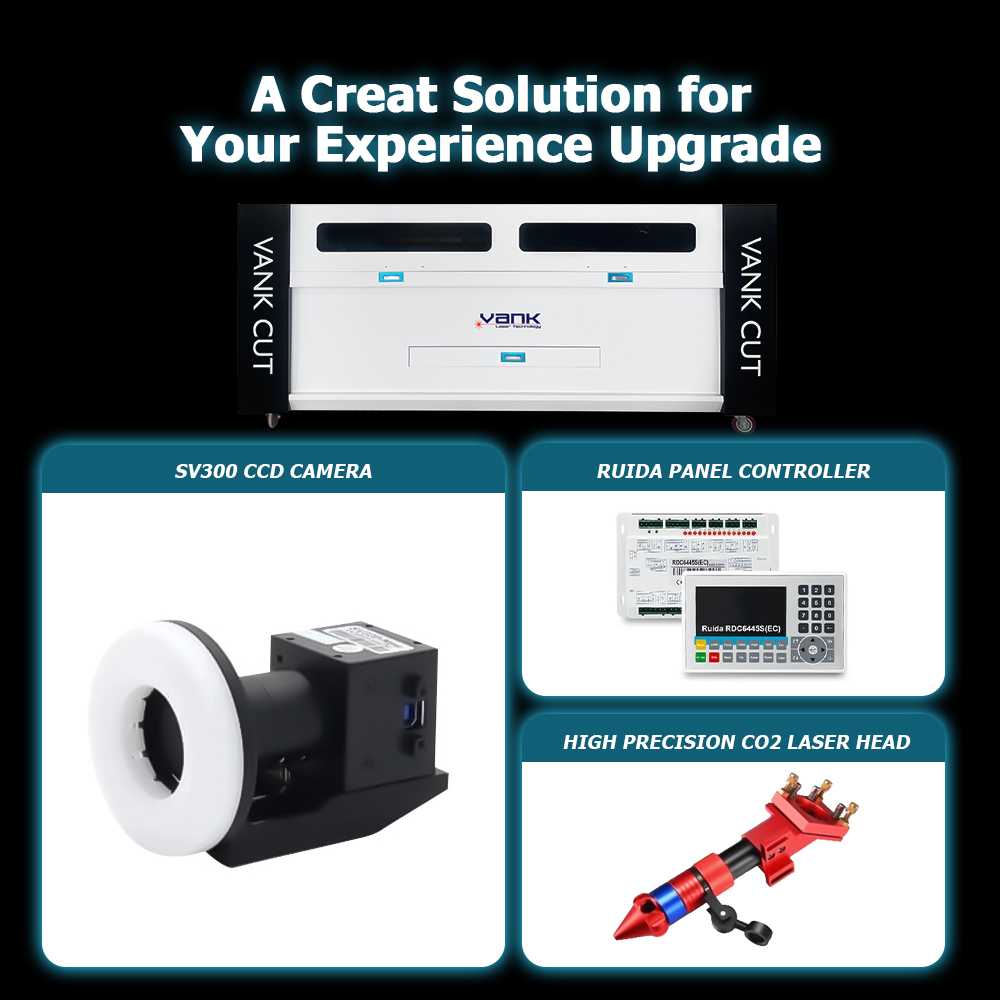

1812 CCD CAMERA CO2 LASER ENGRAVING CUTTING MACHINE
Applications for Wood, Acrylic, Leather...
CO2 laser cutting machine can cut and engrave all kinds of non-metal, such as acrylic, two-color board, marble, wood, plywood, textile, leather, glass, paper, etc.
Widely used in craft gifts, souvenirs, Chinese paper-cutting, advertising signs, clothing, furniture, and many other industries.
The cutting and engraving speed is fast and the precision is high. The lifting platform, cellular platform, and rotary platform can be configured according to demand.
The working size of the machine can be selected according to the needs.
Fixed cabinet frame to improve rigidity.
The material can extend through the front and rear doors to allow the processing of larger workpieces.
Using ultra-fine precision cutting technology, it can process a wide range of materials, with smooth cutting edges and no burrs.
Exhaust, air suction, and blowing aid systems solve the problems that have plagued the laser equipment manufacturing industry for many years.
This machine adopts a USB port to transmit data, and the content capacity is larger
| Model | VankCut-9060CCD/ VankCut-1390CCD/ VankCut-1610CCD |
| Laser Power | 80W/100W/120W/150W/180W/200W/300W |

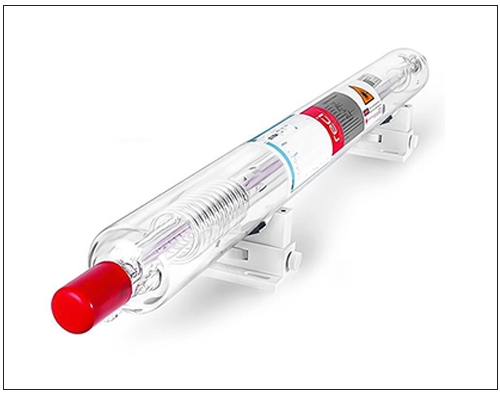

| Laser Type | Sealed Glass CO2 Laser Tube, 10-6μm |
| Cooling Type | Water Cooling |
| Engraving Speed | 0-60000mm/min |
| Cutting Speed | 0-40000mm/min |
| Laser Output Control | 0-100% set by software |
| Min.Engraving Size | Chinese:2*2mm, English Letter:1*1mm |
| Highest Scanning Precision | 4000DPI |
| Locating Accuracy | ≤0.01mm |

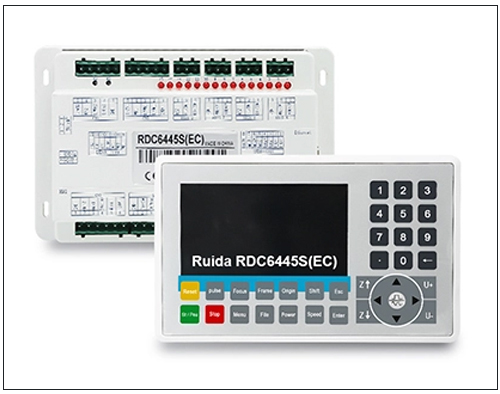

| Controlling Software | DSP Control System |
| Graphic Format Supported | DST/PLT/BMP/DWG/DXF/AI/HPGL… |
| Compatible Software | CORELDRAW, PHOTOSHOP, AUTOCAD,TAJIMA… |
| Color Separation | Yes |
| Drive System | High-precision 3-phase Stepper Motor |
| Auxiliary Equipments | Exhaust Fan and Air Exhaust Pipe |
| Power Supply | AC110v/220v+10%, 50HZ/60HZ |
| Working Environment | Temperature:0-45C, Humidity5-95%(No Condensate Water) |
Elevate your manufacturing capabilities across industries with our CO2 laser cutting machine. Perfect for automotive, aerospace, electronics, and medical sectors, achieve precise cuts for components and parts. Seamlessly fabricate intricate signage for advertising, fashion intricate patterns in textiles, or create bespoke designs in woodworking. With unmatched precision and versatility, our CO2 laser cutting machine empowers your business to excel in every application.
