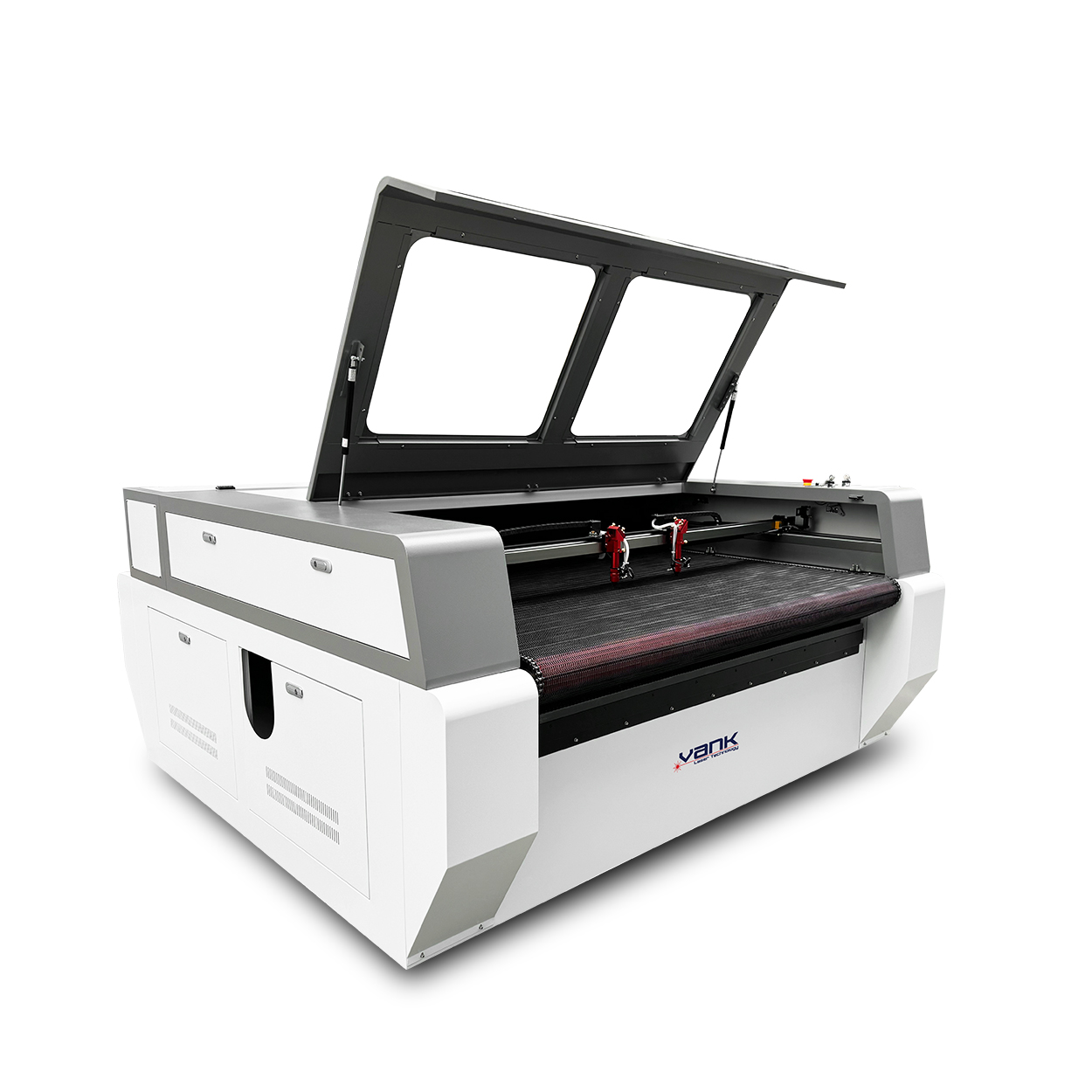

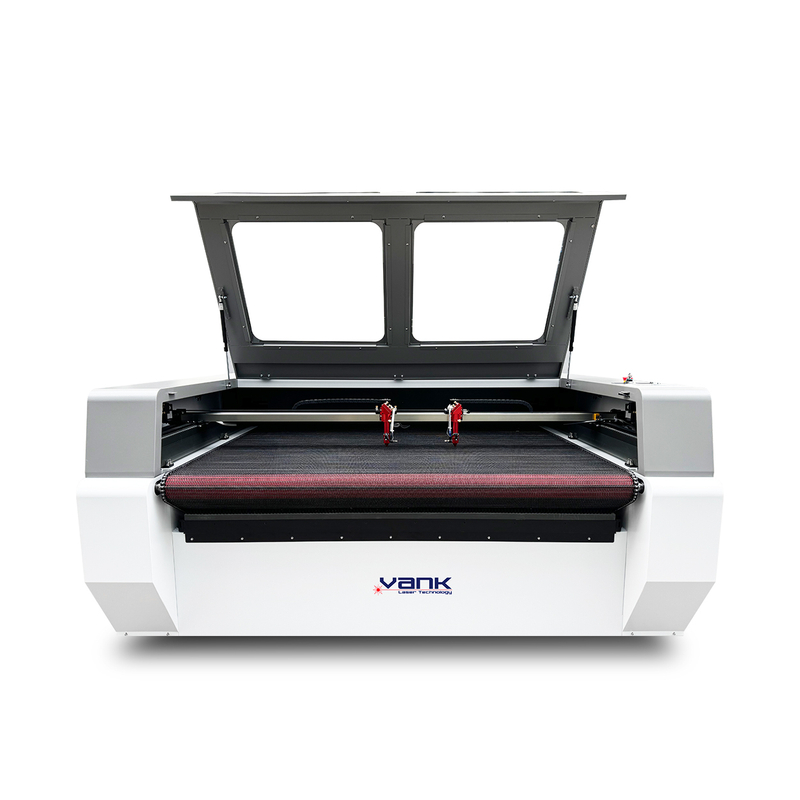

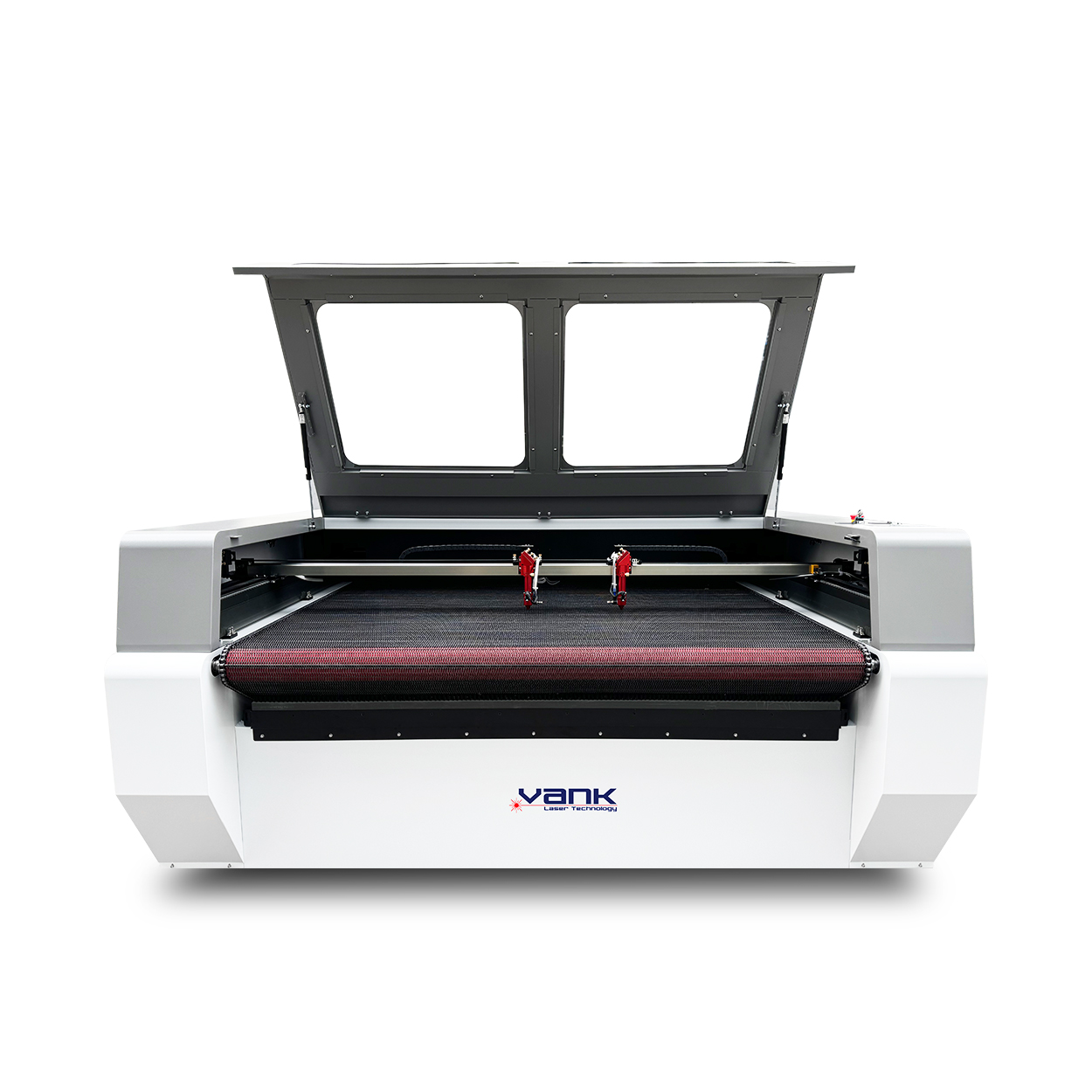

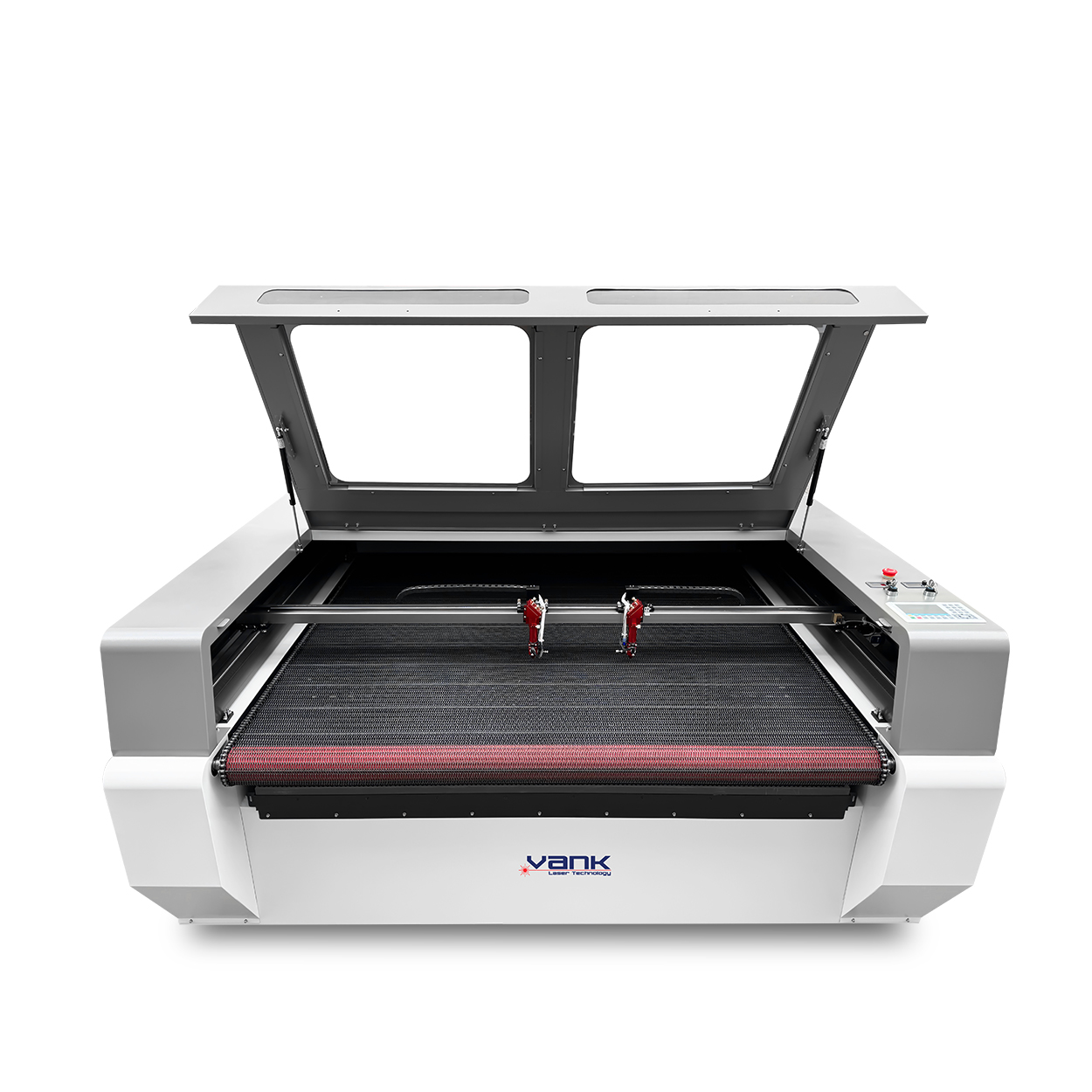

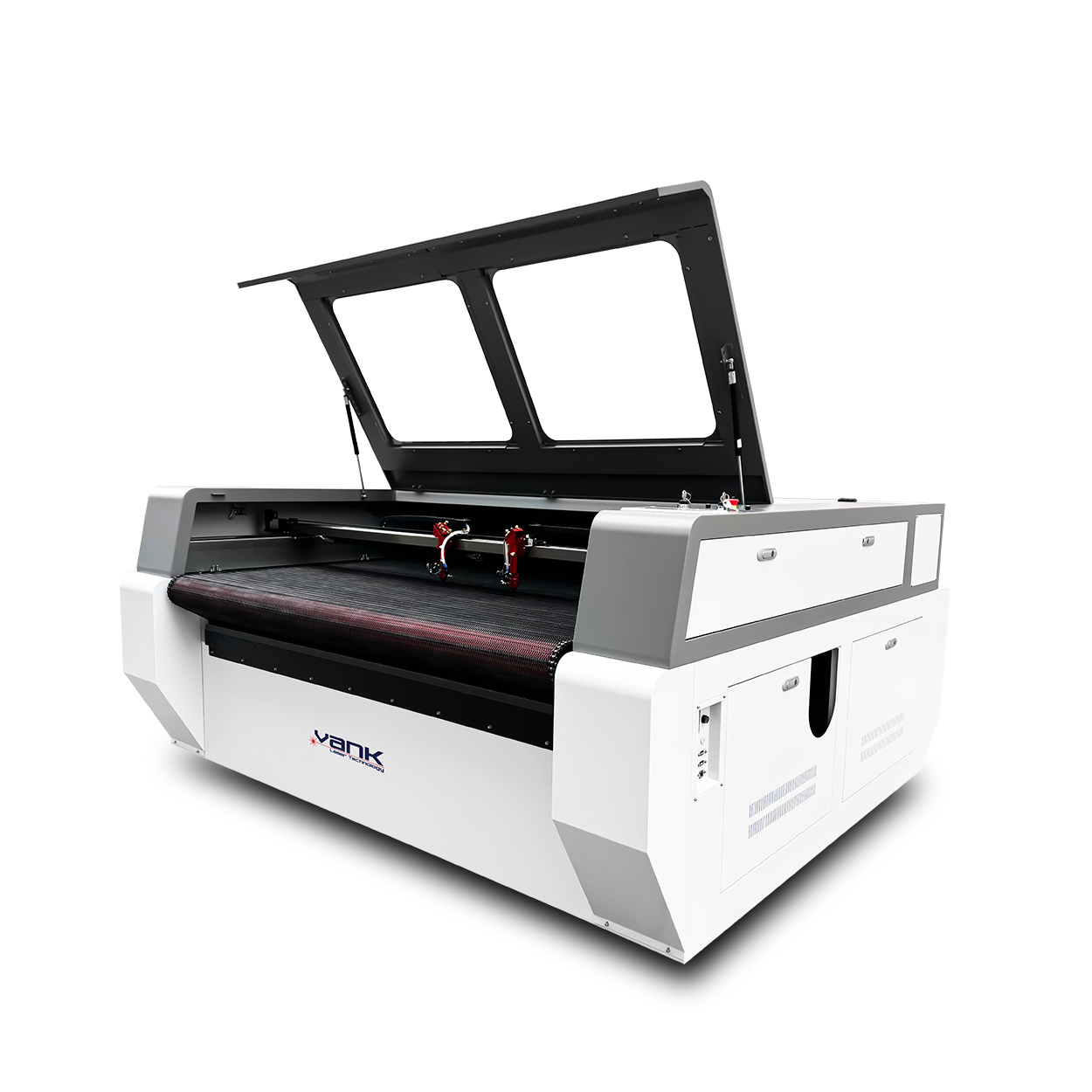

LASER CUTTER FOR TEXTILE | FABRIC CUTTER
Polyester, nylon, nonwoven and woven fabrics, synthetic fibers...
Polyester, nylon, nonwoven and woven fabrics, synthetic fibers, PES, polypropylene (PP), polyamide (PA), glass fiber (or glass fibre, fiberglass, fibreglass), Kevlar, aramid, Lycra, polyester PET, PTFE, paper, foam, cotton, plastic, viscose, felts, knitted fabrics, 3D spacer fabrics, carbon fibers, cordura fabrics, UHMWPE, sail cloth, microfiber, spandex fabric, etc.
Applications
1. Clothing Textiles: fabrics and technical textiles for clothing applications.
2. Home Textiles: carpets, mattress, sofas, armchairs, curtains, cushion materials, pillows, floor and wall coverings, textile wallpaper, etc.
3. Industrial Textiles: filtration, air dispersion ducts, etc.
4. Textiles used in automotive and aerospace: aircraft carpets, cat mats, seat covers, seat belts, airbags, etc.
5. Outdoors and Sports textiles: sports equipment, flying and sailing sports, canvas covers, marquee tents, parachutes, paragliding, kitesurf, etc.
6. Protective textiles: insulation materials, bulletproof vests, etc.
A. Sportswear, jersey, cloth, banner, tent, inflatable model, advertisement, printing, hot air balloon, canvas, etc. (Mark Point)
B. Sportswear, uniforms, banner, shirts, toys, fabrics, shoe material (Visual scan model)
A. Smooth edge cutting, without ripple.
B. Uni body frame design makes machine runs stable and quiet.
C. Simple operation, random cutting/ engraving sequence and random level of processing, Part or whole output one-time.
D. Laser power, speed and focal setting can be flexible.
E. Equipped with auto feeding system, can continuous cutting and engraving.
F. Realize free switch between single and double laser head.
| Model | VankCut-1612 2 heads |
| Laser Power | 80W/100W/120W/150W |
| Laser Type | Sealed Glass CO2 Laser Tube,10-6um |
| Working Mode | Automatic |
| Cutting Precision | 0-36000mm/min |
| Marking Depth | ≤0.3mm |
| Marking Speed | 0-64000mm/min |
| Focal Length | 38.1,50.8,63.5,76.2,101.6mm |
| Cooling Mode | Water Cooling and Protection System |
| Location Precision | 0.015mm |
| Controlling Software | Ruida Control System |
| Location Precision | PLT,DST,AI,DXF,BMP,JPG,CAD,CDR,DWG |
| Operating temperature | 10ºC-40ºC |
| Warranty | 2 Year |
| Beam Quality | <1.2M2 |
| Laser Pulse Frequency | 20-200Khz |
| Humidity | 5% to 85% (No Condensed ) |
| Gross Power | <1250W |
| Min.Line Width | 0.15-0.3mm |
| Power source | AC110V/220V± 10%, 50/60HZ |
| Processing Area | 1600*1000mm(Optional) |
| Working Environment | Clean, Free of Dust |
Laser 2 heads
Double laser cutting head improve the efficiency. Onehead install extra motor to cutting separately.
High Efficiency Auoto Feeding Table
Configure the automatic feeding table, greatly savingtime on material processing efficiency improved severaltimes, cutting uniform, make cost savings.
Control panel
Compatible with design software likeCAD, CORELDRAW,GERBER,TAJIMA etc. user friendly.
Anhui Codos Laser Technology Development Co., Ltd. is a high-tech enterprise with years of experience in R&D, production, sales and technical maintenance in the laser equipment industry. With the professional laser technology as the backing, the company constantly absorbs advanced technology and design concept, and produces and sells laser equipment suitable for various industrial automation production needs.Our company's main products are optical fiber laser cutting machine, fiber laser marking machine, CO2 laser engraving&cutting machine. All products through the CE certification, safe and reliable product quality. In addition to providing standardized products for our customers, we can also provide customized solutions to meet the needs of different customers.Our laser equipment are widely used in industries of electronic, medical, sheet metal, furniture, advertising, craft gifts, architectural model, industrial mold, luxury, decoration, identification, clothing, leather and other industries.We make the high quality advanced machines, we are providing the best after-sale service in China. And we are also offering the most competitive price to all of the customers. "VANK" is known by more and more people. At present, our products have been exported to many countries and regions such as Europe, South America, North America and so on. We have enjoyed the mutual benefit and will move on, and we hope to establish a long term business relations with more and more oversea customers.
Vanklaser at Dubai FEASPA 2024 exhibition
Vanklaser at Printing United Expo 2023
Vanklaser at 2023 Canton Fair
