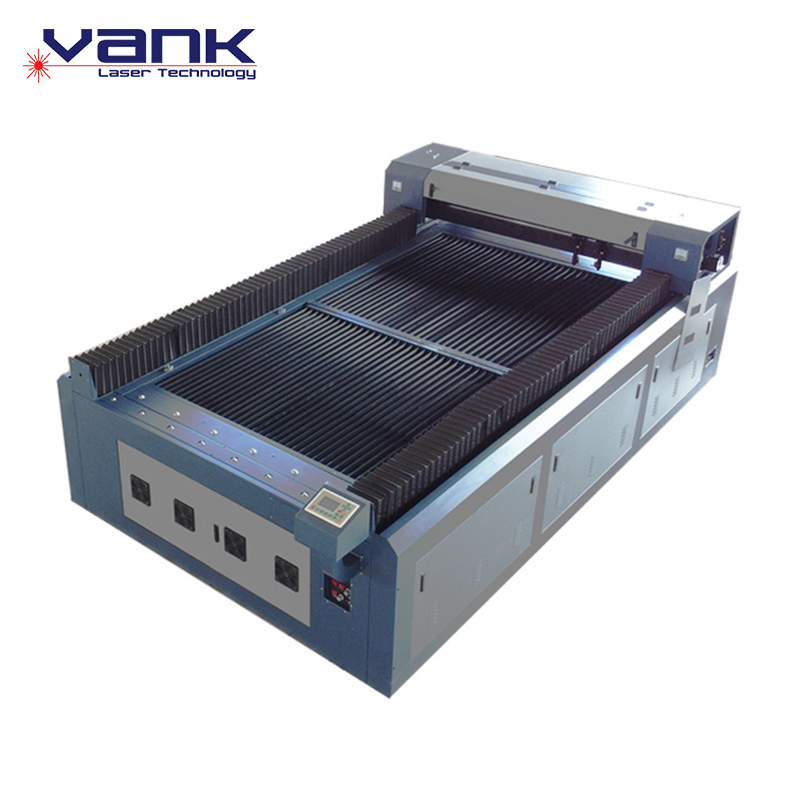

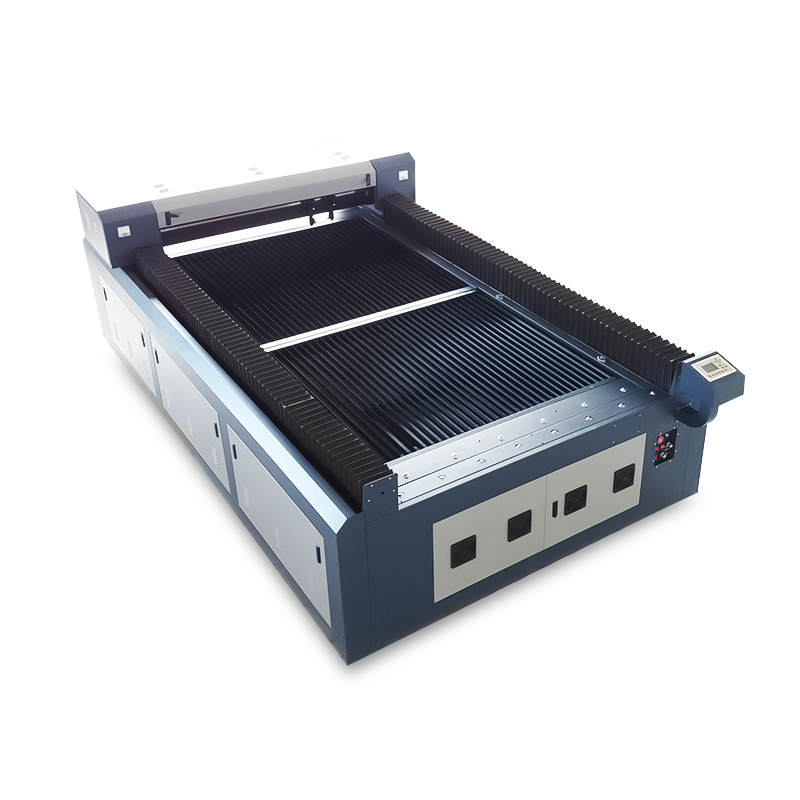

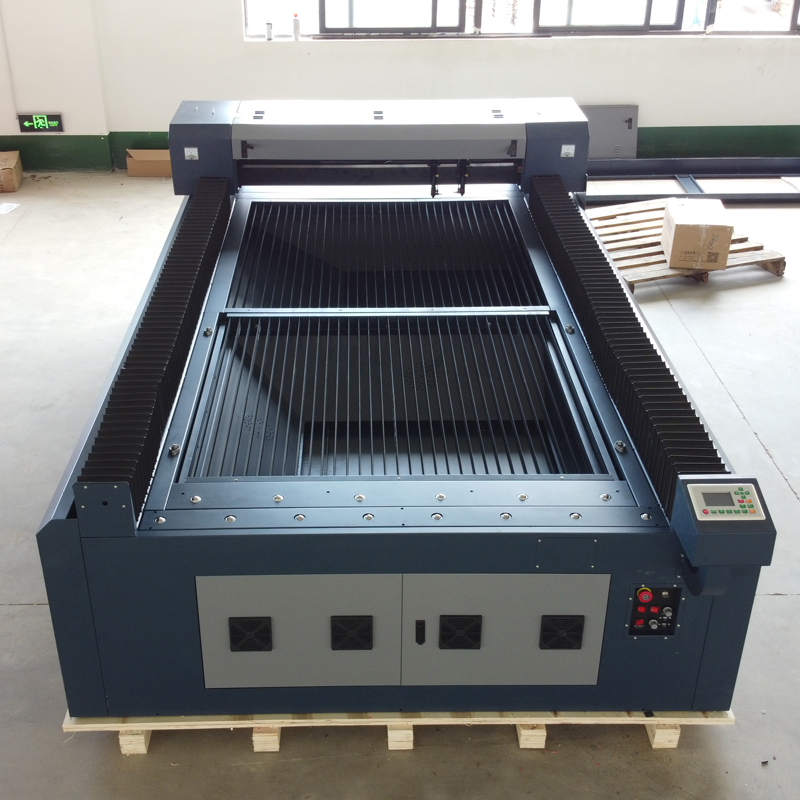

VankCut-1325 Laser Cutting Machine

Large size laser cutter
For acrylic,plywood,plastic
Cutting thickness 0-30mm
CE, FDA Certificates
Availability:
Quantity:
sharethis sharing button


CO2 LASER ENGRAVING CUTTING MACHINE

Applications for Wood, Acrylic, Leather...




APPLICATION SMAPLE



3

Leather

未标题-1

Marble

4

Wood

1

Acrylic

5

Fabric

3

Leather

1

Paper

4

Wood

2

Acrylic

5

Fabric

Materials Engrave Cut Materials Engrave Cut
Wood Fiberglass
Acrylic Plastic
Cloth Cork
Leather Corian
Paper Twill
Delrin Anodized Aluminum
Mat Board Painted Metal
Melamine Tils
Mylar Glass
Pressboard Coated Metals
Rubber Ceramics
Wood Veneer Marble


CORE PARTS


--- CO2 LASER TUBE ---

1

1. Has a fine spot and a long lifespan
 New model, small size, good mode, fine light spot, long life. Suitable for laser marking,Laser cutting, laser engraving.
2. small size high power
 Small size, good mode, higher power and longer life than laser tubes of the same length.Suitable for laser marking, laser cutting, laser engraving, is laser paper-cutting,ldeal for laser cutting cloth, marble marking.
3. fast cutting speed
 High power, good mode, fast cutting speed, small size. Suitable for leather carved cutouts,Cloth cutting, lampshade making, signage and handicraft processing, etc.,lt has good engraving and cutting performance.



--- RUIDA PANEL CONTROLLER ---

2

1.Support up to 4 servo/stepper motor controls
2.Support large-format vision, mark point vision cutting and projection cutting
3.Support 4 channels of oC gate output, can directly drive 5V/24 relays
4.Support mobile APP
5.Support double-head electric mutual shift control and super-format split cutting processing
6.Support double-head asynchronous processing
7.support 1 channel extended serial port, can communicate with EPLC-400, wireless handheld device(BWK201R,BWK301 R),and other devices with RS232 standard interface

PRODUCT PARAMETERS


Model VankCut-9060/ VankCut-1390/ VankCut-1410/ VankCut-1610/VankCut-1325
Laser Power 80W/100W/120W/150W/180W/200W/300W
Laser Type Sealed Glass CO2 Laser Tube, 10-6μm
Cooling Type Water Cooling
Engraving Speed 0-60000mm/min
Cutting Speed 0-40000mm/min
Laser Output Control 0-100% set by software
Min.Engraving Size Chinese:2*2mm, English Letter:1*1mm
Highest Scanning Precision 4000DPI
Locating Accuracy ≤0.01mm
Controlling Software DSP Control System
Graphic Format Supported DST/PLT/BMP/DWG/DXF/AI/HPGL…
Compatible Software CORELDRAW, PHOTOSHOP, AUTOCAD,TAJIMA…
Color Separation Yes
Drive System High-precision 3-phase Stepper Motor
Auxiliary Equipments Exhaust Fan and Air Exhaust Pipe
Power Supply AC110v/220v+10%, 50HZ/60HZ
Working Environment Temperature:0-45C, Humidity5-95%(No Condensate Water)

Company Profile

Anhui Codos Laser Technology Development Co., Ltd. is a high-tech enterprise with years of experience in R&D, production, sales and technical maintenance in the laser equipment industry. With the professional laser technology as the backing, the company constantly absorbs advanced technology and design concept, and produces and sells laser equipment suitable for various industrial automation production needs.Our company's main products are optical fiber laser cutting machine, fiber laser marking machine, CO2 laser engraving&cutting machine. All products through the CE certification, safe and reliable product quality. In addition to providing standardized products for our customers, we can also provide customized solutions to meet the needs of different customers.Our laser equipment are widely used in industries of electronic, medical, sheet metal, furniture, advertising, craft gifts, architectural model, industrial mold, luxury, decoration, identification, clothing, leather and other industries.We make the high quality advanced machines, we are providing the best after-sale service in China. And we are also offering the most competitive price to all of the customers. "VANK" is known by more and more people. At present, our products have been exported to many countries and regions such as Europe, South America, North America and so on. We have enjoyed the mutual benefit and will move on, and we hope to establish a long term business relations with more and more oversea customers.

photobank (1)

photobank

Exhibition
5
6
7

Vanklaser at Dubai FEASPA 2024 exhibition

2
3
4

Vanklaser at Printing United Expo 2023

2
3
4

 Vanklaser at 2023 Canton Fair

2
3
4

Product packaging


Heba542aac6104c088006dd54b0cf45d1A


FAQ


1.I am looking for CO2 laser machine, any recommendation?
A: Hi, there. Thank you for your concern about our laser cutting machine. It's essential to mention us about your cutting requests (materials, thickness, application and your expectation), our sales experts provides customized consulting service in term of your demand.
2.When I got this machine, but I don't know how to use it. What should I do?
A:We will send video and English manual with the machine. If you still have some doubts, we can talk by telephone or skype and e-mail.
3.How can I get the sample to check you quality ?
A:If you want to marking sample to check the quality, we can help you do this. first you need to provide the logo or design to us, free mark samples can be provided.
4.Do the machine can be customized according my requirements?
A:Sure,we have a strong technical team and have rich experience. Our goal is to make you satisfied.
5:Can you arrange the shipment for me?
A:We can arrange the shipment for our clients accordingly by sea and air. Trading terms FOB, CIF, EXW are available.
6:Why should you choose us?
We have the high attention and faster response of post-sales in 24hrs. We offer two years-warranty for all products to ensure their activities and after-sales.
