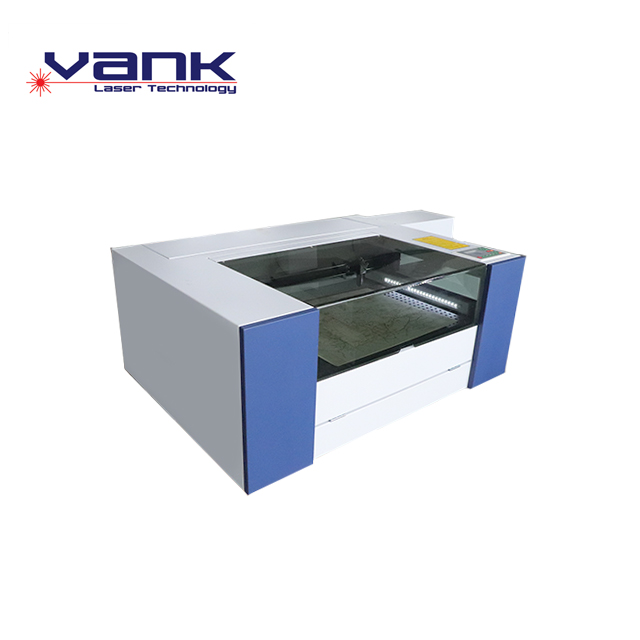

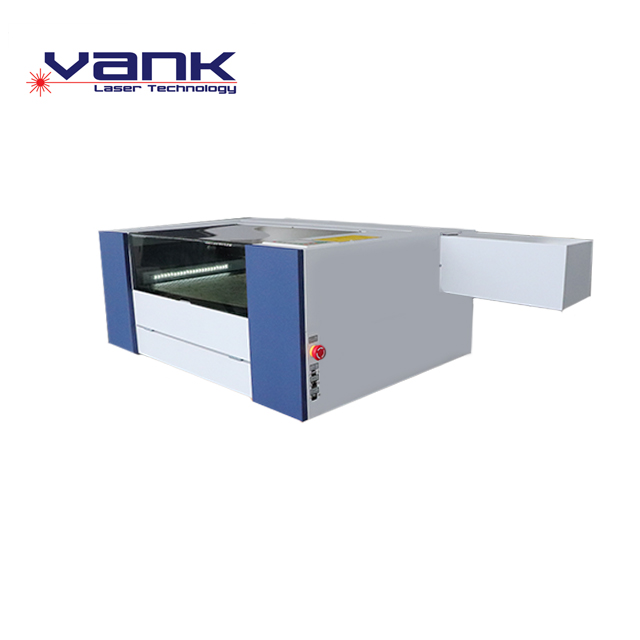

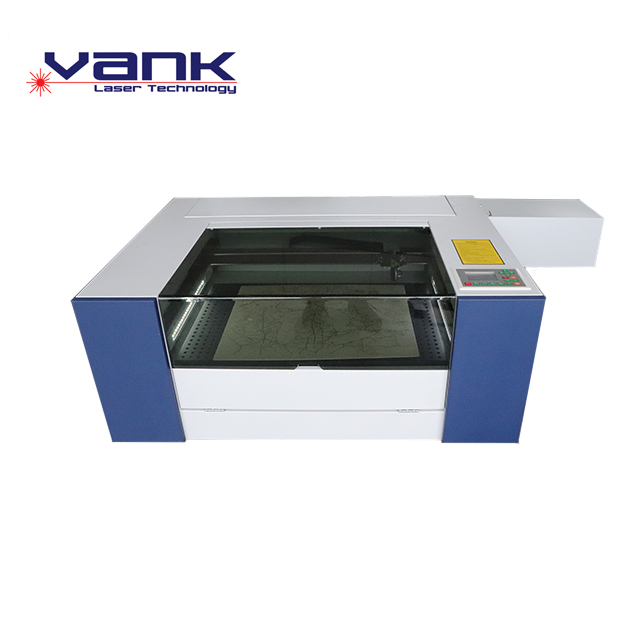

CO2 LASER ENGRAVING CUTTING MACHINE
VANKCUT-6040
----MACHINE VIDEO---
---PRODUCT PARAMETERS---
| Model | VankCut-6040 |
|---|---|
| Working Area | 600mm*400mm |
| Laser Power | 40W/60W/90W/100W |
| Laser Type | Sealed Glass CO2 Laser Tube, 10-6μm |
| Cooling Type | Water Cooling |
| Engraving Speed | 0-60000mm/min |
| Cutting Speed | 0-40000mm/min |
| Laser Output Control | 0-100% set by software |
| Min. Engraving Size | Chinese:2*2mm, English Letter:1*1mm |
| Highest Scanning Precision | 4000DPI |
| Locating Accuracy | ≤0.01mm |
| Controlling Software | DSP Control System |
| Graphic Format Supported | DST/PLT/BMP/DWG/DXF/AI/HPGL… |
| Compatible Software | CORELDRAW, PHOTOSHOP, AUTOCAD, TAJIMA,etc. |
| Color Separation | Yes |
| Drive System | High-precision 3-phase Stepper Motor |
| Auxiliary Equipments | Exhaust Fan and Air Exhaust Pipe |
| Power Supply | AC110V/220V+10%, 50HZ/60HZ |
| Working Environment | Temperature:0-45C, Humidity 5-95%(No Condensate Water) |
---PRODUCT ADVANTAGES---
1 High precision. Use taiwan square rail, famous 3-phase step motors.
2 Strong body. Machine frameworks are made by squre tubes.
3 360° full view lucid acrylic cover.
4 Turn off the power to continue engraving.Cap protection.
5 Professional control system fast, friendly, easy to use.
6 3 in 1 closed beam, simple and generous.
7 Long-life laser tube.10000 hours life time!
8 Professional control system offers fast cutting function with shortest process path, save time.
9 2 years warranty.
---APPLICATIONS SHOW---
• Industries: Mould industry (construction mould, aviation and navigation mould, wooden mould), advertising, decoration, arts and crafts, electronics,electric appliances, etC.
• Materials: Materials such as acryl, wood plankslight planks,candlenut wood),bamboo ware, double color board, paper, leather, shell, coconut shell,0X horn, resin animal grease,ABS board, lamp shade, etc.
---PRODUCT FEATURES---
 CO2 Glass Laser Tube |  CO2 Laser power Supply |  Stepper Motor Driver |
 Water Chiller |  Air Compressor |  Exhaust Fan |
Panel Controller |
Honey Comb Table/Knife Table |
Up Down Table |
---PRODUCT DESCRIPTION---
What are the advantages of Vankcut-Series?
Laser engraving cutting offers a huge number of advantages to its users:
• Laser engraving cutting allows for great control over beam intensity, length and heat output.
• Laser engraving cutting uses an extremely low level of power consumption, typically around 10Kw as compared to 50Kw used by other processes.
• Laser engraving cutting can work with a huge range of materials.
• Laser engraving cutting is a non-contact process, meaning that the laser beam itself never actually touches the material it works with.
• This reduces heat damage to the surrounding area, which increases productivity by decreasing downtime and repair costs.
• Laser engraving cutting machines have very low maintenance costs and inexpensive parts for replacement.
• Laser engraving cutting delivers precise cuts with smooth finishes.
• Laser engraving cutting can switch quickly between multiple applications and setups, reducing time wastage and the need for multiple machines.
• With the above advantages, it is easy to see why laser cutting is becoming so widely use.
