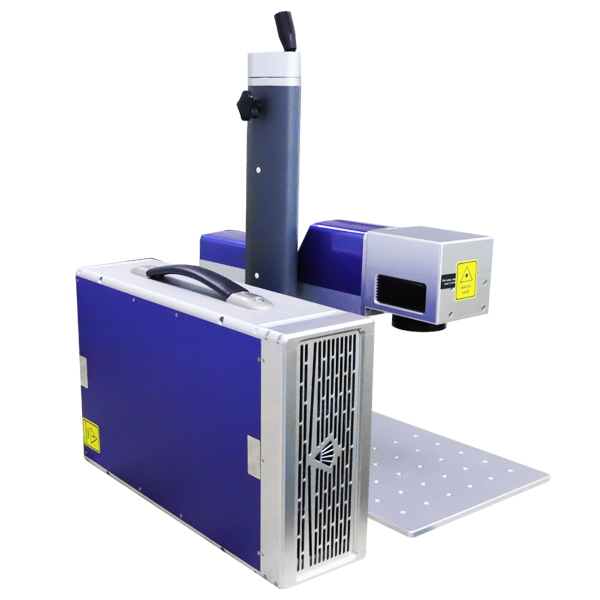

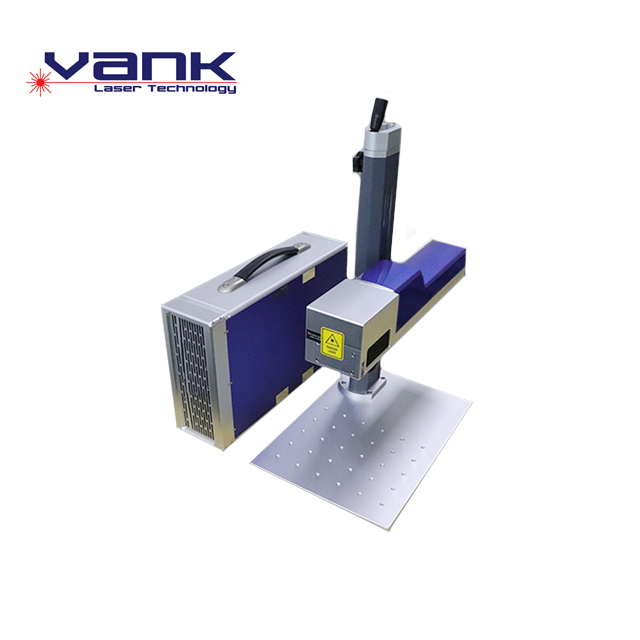

Fiber Laser Marking Machine
VKD-MINI
---MACHINE VIDEO---
---PRODUCT PARAMETERS---
| Model | VKD-Mini | VKD-PT |
| Power | 10W | 20W |
| Wavelength | 1064nm | |
| Beam Quality | M2<1.3 | |
| Output Power | 10%-100%(continuously to be adjusted) | |
| Output Frequency | 20KHz-100KHz(continuously to be adjusted) | |
| Power Stability(8h) | <±1%rms | |
| Focus Spot Diameter | <0.01mm | |
| Engraving Range | ≤400*400mm(customized) | |
| Engraving Depth | 1.2mm | |
| Engraving Speed | 800 standard characters/second | |
| Minimum Line Width | 0.012mm | |
| Minimum Character | 0.1mm | |
| Repeated Accuracy | ±0.003mm | |
| System Operation | Windows XP/2000/98 | |
| Cooling Mode | Air Cooling | |
| Environment Temperature | 10℃~35℃ | |
| Environment Humidity | 20%-80% | |
| Power Requirement | 220V/Singlephase/50Hz/<400W | |
| Life of Laser Module | 100000Hrs | |
| Host Size | 400mmx350mmx635mm | |
---PRODUCT DESCRIPTION---
Description

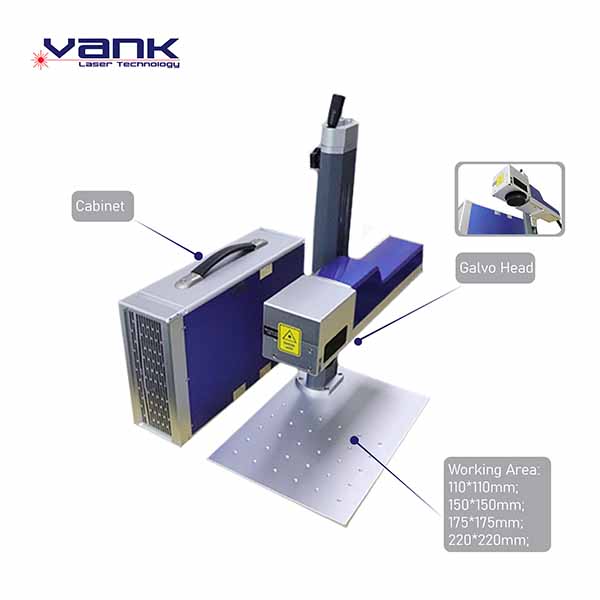

• VANKLASER Fiber Laser Marking Machines adopts the most advanced fiber laser source and high-quality galva scanning system. It can provide stable power output,perfect optical mode,good beam quality and high speed marking,so users can get a perfect effect and high efficiency,which can fulfill massive production.
• The advantages of this machine is as following:good looking,easy operation,no need material,no need maintenance,no faulty in long time working.So it can meet the demand of industrial continuous work.
Application Area
• It widely used in industries of mobile phone keys,translucent plastic keys,electronic components,integrated circuit(IC),electrical appliances,communication products,sanitary ware,tool parts,kniv es,watches,glasses,jewellery,,auto ac cessories,luggage buckles,cooking u tensils,stainless steel products.
• All kinds of metal (including rare metal),engineering plastic,electropla ting materials,coated materials,spraying materials,plastic and rubber,e poxy resin,ceramics and other materials.
---Main Feature---
1. Laser power output is stable,and light spot quality is good.Ultrahigh accuracy and fineness,with resolution up to 2540dpi.
2. Quick marking and cutting speed at 2-3 times that of traditional machines.
3. There is no restriction in operation system.It is convenient in operation,with fully closed light paths,so it is stable,reliable and free in maintenance with ultra-long service life up to more than 100,000 hours.
4. No pollution,no noise,and no consumable materials.High elector-optical conversion efficiency . The gross power consumption is 500W, which is a tenth of lamp pumped solid laser marking machine, so can greatly save energy.
5. No need any maintenance, long life, small volume, suit for working in atrocious working conditions.
6. Powerful marking software. It is compatible with file generate from coreldraw, AutoCAD, Photoshop, etc; support PLT,PCX, DXF, BMP format; SHX , TTF font can be used directly;it also supports automatically coding,printing serial number, batch number, date, bar code,2D bar code, number jumping automatically, etc.
---PRODUCT ADVANTAGES---

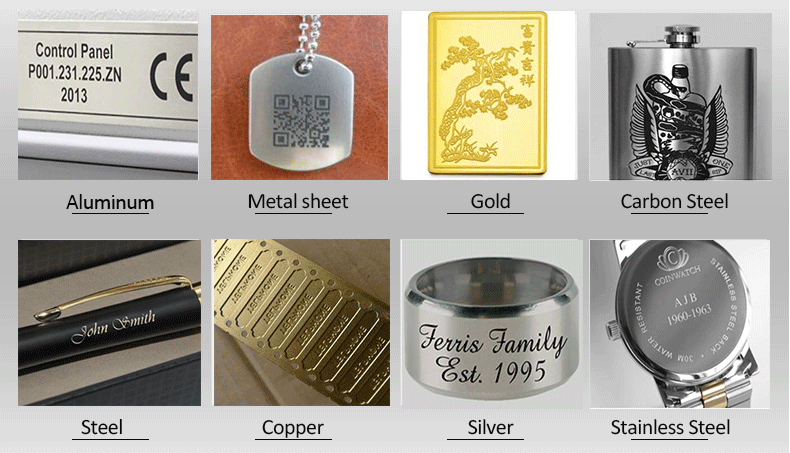

---APPLICATION SHOW---
• All kinds of metal (including rare metal),engineering plastic,electropla ting materials,coated materials,spra ying materials,plastic and rubber,e poxy resin,ceramics and other materials.
Fiber Laser Marking Machine
VKD-MINI
---MACHINE VIDEO---
---PRODUCT PARAMETERS---
| Model | VKD-Mini | VKD-PT |
| Power | 10W | 20W |
| Wavelength | 1064nm | |
| Beam Quality | M2<1.3 | |
| Output Power | 10%-100%(continuously to be adjusted) | |
| Output Frequency | 20KHz-100KHz(continuously to be adjusted) | |
| Power Stability(8h) | <±1%rms | |
| Focus Spot Diameter | <0.01mm | |
| Engraving Range | ≤400*400mm(customized) | |
| Engraving Depth | 1.2mm | |
| Engraving Speed | 800 standard characters/second | |
| Minimum Line Width | 0.012mm | |
| Minimum Character | 0.1mm | |
| Repeated Accuracy | ±0.003mm | |
| System Operation | Windows XP/2000/98 | |
| Cooling Mode | Air Cooling | |
| Environment Temperature | 10℃~35℃ | |
| Environment Humidity | 20%-80% | |
| Power Requirement | 220V/Singlephase/50Hz/<400W | |
| Life of Laser Module | 100000Hrs | |
| Host Size | 400mmx350mmx635mm | |
---PRODUCT DESCRIPTION---
Description
• VANKLASER Fiber Laser Marking Machines adopts the most advanced fiber laser source and high-quality galva scanning system. It can provide stable power output,perfect optical mode,good beam quality and high speed marking,so users can get a perfect effect and high efficiency,which can fulfill massive production.
• The advantages of this machine is as following:good looking,easy operation,no need material,no need maintenance,no faulty in long time working.So it can meet the demand of industrial continuous work.
Application Area
• It widely used in industries of mobile phone keys,translucent plastic keys,electronic components,integrated circuit(IC),electrical appliances,communication products,sanitary ware,tool parts,kniv es,watches,glasses,jewellery,,auto ac cessories,luggage buckles,cooking u tensils,stainless steel products.
• All kinds of metal (including rare metal),engineering plastic,electropla ting materials,coated materials,spraying materials,plastic and rubber,e poxy resin,ceramics and other materials.
---Main Feature---
1. Laser power output is stable,and light spot quality is good.Ultrahigh accuracy and fineness,with resolution up to 2540dpi.
2. Quick marking and cutting speed at 2-3 times that of traditional machines.
3. There is no restriction in operation system.It is convenient in operation,with fully closed light paths,so it is stable,reliable and free in maintenance with ultra-long service life up to more than 100,000 hours.
4. No pollution,no noise,and no consumable materials.High elector-optical conversion efficiency . The gross power consumption is 500W, which is a tenth of lamp pumped solid laser marking machine, so can greatly save energy.
5. No need any maintenance, long life, small volume, suit for working in atrocious working conditions.
6. Powerful marking software. It is compatible with file generate from coreldraw, AutoCAD, Photoshop, etc; support PLT,PCX, DXF, BMP format; SHX , TTF font can be used directly;it also supports automatically coding,printing serial number, batch number, date, bar code,2D bar code, number jumping automatically, etc.
---PRODUCT ADVANTAGES---
---APPLICATION SHOW---
• All kinds of metal (including rare metal),engineering plastic,electropla ting materials,coated materials,spra ying materials,plastic and rubber,e poxy resin,ceramics and other materials.
