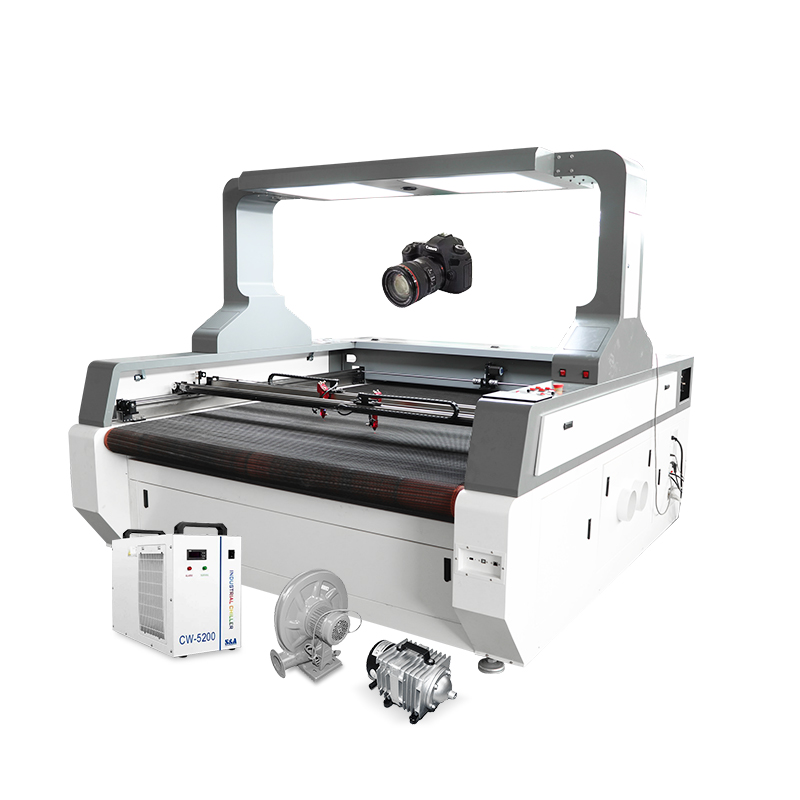

VankCut-1812 Top Camera Version Fabric Laser Cutter

Canon Camera 1500D
Auto feeding table
Fabric,cloth laser cut
CE, FDA Certificates
Availability:
Quantity:
sharethis sharing button


High Speed Industrial Textile Fabric Laser Cutting Machine

Polyester, nylon, nonwoven and woven fabrics, synthetic fibers...



b1471e303da689551033149aa9ae9bc1

Applicable Materials

Polyester, nylon, nonwoven and woven fabrics, synthetic fibers, PES, polypropylene (PP), polyamide (PA), glass fiber (or glass fibre, fiberglass, fibreglass), Kevlar, aramid, Lycra, polyester PET, PTFE, paper, foam, cotton, plastic, viscose, felts, knitted fabrics, 3D spacer fabrics, carbon fibers, cordura fabrics, UHMWPE, sail cloth, microfiber, spandex fabric, etc.

Applications

1. Clothing Textiles: fabrics and technical textiles for clothing applications.

2. Home Textiles: carpets, mattress, sofas, armchairs, curtains, cushion materials, pillows, floor and wall coverings, textile wallpaper, etc.

3. Industrial Textiles: filtration, air dispersion ducts, etc.

4. Textiles used in automotive and aerospace: aircraft carpets, cat mats, seat covers, seat belts, airbags, etc.

5. Outdoors and Sports textiles: sports equipment, flying and sailing sports, canvas covers, marquee tents, parachutes, paragliding, kitesurf, etc.

6. Protective textiles: insulation materials, bulletproof vests, etc.


1   1


Product parameters

Model VankCut-1812 CCD
Laser Power 100W/120W/150W/180W
Laser Type Sealed Glass CO2 Laser Tube,10-6um
Working Area 1800*1200mm
Cooling Type Water Cooling
Acceleration 8,000mm/s2
Cutting speed 0~1,200mm/s
Laser Output Control 0-100% set by software
Working table Vacuum conveyor working table
Controlling Software Ruida Control System
Graphic Format Supported DST/PLT/BMP/DWG/DXF/AI/HPGL...
Compatible Software CORELDRAW,PHOTOSHOP,AUTOCAD,TAJIMA,etc.
Working Environment Temperature:0-45C,Humidity 5-95%(No Condensate Water)
Core Parts

1

Auto Feeder


It is a feeding unit which runs synchronous with the laser cutter. the feeder will transfer the roll materials to the cutting table after you put the rolls on the feeder. You can set the different feeding speeds according to the main machine speed. The feeder has the sensor to ensure accurate positioning of the material. The feeder can be equipped with different shaft diameters for different rolls. The different pneumatic roller will be used for the textiles with different tension, thickness... This unit helps you to realize a completely automated cutting process.

Auto Feeder


Independent dual heads

The independent dual heads can cut different designs at the same time. It increases the cutting efficiency and production flexibility at the largest degree.



1

1

Honey Come Table


The vacuum table is under the cutting table, there is a series of holes in the surface of the table pull the material down onto the surface. The vacuum table allows full access to the surface, there is nothing to get in the way of the laser beam while it is cutting. With the strong exhaust fans together, it also helps to prevent the smoke and dust when cutting.

Vision System(Top Canon Camera)


The vision system is an important option when you want to cut the contours. No matter for printing contour or embroidery contour, you will need this device to read the contour or special data for positioning and cutting. Contour scanning and marks scanning are suitable for different application. We offer different vision options for different applications.

1


Fabric Laser Cutting Machine characteristics:

1)This laser cutting machine delivers fast and extremely accurate processing thanks to its high-quality components.  Very dependable and maintenance free.

2)This laser machine comes with conveyor system. The machine feeds the material automatically in a continuous cycle in synchronism with the conveyor bed eliminating downtime completely to achieve the maximum productivity possible.

3)The vacuum conveyor worktable has the function of negative pressure adsorption to ensure the flatness of the fabric during laser cutting.

4)Automatic feeder with deviation correction function (optional) to ensure accurate feeding.

5)The unique manual and automatic interactive nesting software function can improve the fabric utilization to the extreme.

6)Along with the exhaust system, the laser head and the exhaust system synchronize; good exhaust effect, to ensure that dust dose not pollute the materials.

7)It is possible to complete entire format cutting of the extra-long layout with a single layout length that exceeds the cut format.

8)Along with the exhaust system, the laser head and the exhaust system synchronize; good exhaust effect, to ensure that dust dose not pollute the materials.


Company Profile

Anhui Codos Laser Technology Development Co., Ltd. is a high-tech enterprise with years of experience in R&D, production, sales and technical maintenance in the laser equipment industry. With the professional laser technology as the backing, the company constantly absorbs advanced technology and design concept, and produces and sells laser equipment suitable for various industrial automation production needs.Our company's main products are optical fiber laser cutting machine, fiber laser marking machine, CO2 laser engraving&cutting machine. All products through the CE certification, safe and reliable product quality. In addition to providing standardized products for our customers, we can also provide customized solutions to meet the needs of different customers.Our laser equipment are widely used in industries of electronic, medical, sheet metal, furniture, advertising, craft gifts, architectural model, industrial mold, luxury, decoration, identification, clothing, leather and other industries.We make the high quality advanced machines, we are providing the best after-sale service in China. And we are also offering the most competitive price to all of the customers. "VANK" is known by more and more people. At present, our products have been exported to many countries and regions such as Europe, South America, North America and so on. We have enjoyed the mutual benefit and will move on, and we hope to establish a long term business relations with more and more oversea customers.

photobank (1)

photobank

Exhibition

H22e1cd5bdf8846fdaeb66481716dbe36Z

H68f65e0b49834217aef464f34ce88f20O

H7064f35e3d0b4ffb98cf8c59f5403334q

H747efcbfac64428d817f1979392423e4T

H22f0d4a1772342008284aa7ff2821ffba

H14c2b2fcafed4c28bd8f1600a54520b69

Product packaging


Heba542aac6104c088006dd54b0cf45d1A


FAQ


1.I am looking for CO2 laser machine, any recommendation?
A: Hi, there. Thank you for your concern about our laser cutting machine. It's essential to mention us about your cutting requests (materials, thickness, application and your expectation), our sales experts provides customized consulting service in term of your demand.
2.When I got this machine, but I don't know how to use it. What should I do?
A:We will send video and English manual with the machine. If you still have some doubts, we can talk by telephone or skype and e-mail.
3.How can I get the sample to check you quality ?
A:If you want to marking sample to check the quality, we can help you do this. first you need to provide the logo or design to us, free mark samples can be provided.
4.Do the machine can be customized according my requirements?
A:Sure,we have a strong technical team and have rich experience. Our goal is to make you satisfied.
5:Can you arrange the shipment for me?
A:We can arrange the shipment for our clients accordingly by sea and air. Trading terms FOB, CIF, EXW are available.
6:Why should you choose us?
We have the high attention and faster response of post-sales in 24hrs. We offer two years-warranty for all products to ensure their activities and after-sales.
