200W Troller Case Mopa Laser Cleaning Machine

Troller Case Mopa Fiber laser cleaning machines are suitable for metal surfaces. The laser beam achieves the desired cleaning effect precisely and easily. Non-contact cleaning protects component mounts from damage. With precise cleaning function, it can realize selective cleaning of precise position and precise size.

Quantity:
Availability:





Inquire Add to Basket

Product Description

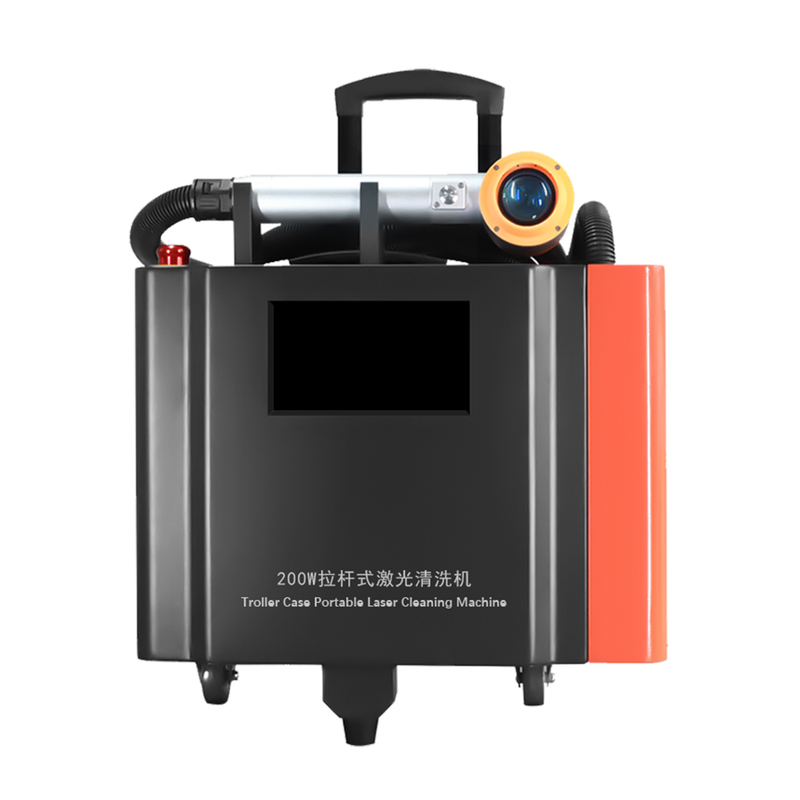

200W TROLLER CASE MOPA LASER CLEANING MACHINE

stainless steel, steel plate, and galvanized sheet....

1 (2)

Rust,Oxide layer,Oil stains removal

Mopa type fiber laser machine can provide maximum protection for materials during cleaning pollutant

Laser oil removal Laser weld removal Laser rust remova

Laser coating cleaning Laser oxide removal Laser paint removal

Application

• A Metal surface cleaning

• B Removal paint of metal surface

• C stains cleaning on the surface

• D Surface coating cleaning

• E Pretreatment of welding surface cleaning

• F Stone surface cleaning

It can meet a variety of cleaning needs:

• Laser cleaning does not touch the surface of the mold, gasifies residual substances, does not damage the mold, and can prolong the service life of the mold;

• Using laser technology, without any working medium, the residue is directly vaporized by high-energy laser, which is safe, environmentally friendly and effective;

• The performance of the equipment is stable, the core components are imported with original packaging, and the precision integrated design requires no maintenance;

Specifications

Operating environment
Powered by	Optional mobile power supply
Powered by	Standard single-phase 220V± 10%, 50/60Hz
Machine power consumption	Less than 748W
Environment temperature	5℃~40℃
Environment humidity	≤80%
Optical parameters
Laser average power	≥200W
Power instability	Less than 2%
Laser working method	Pulse
Pulse width	10-500NS adjustable
Maximum single pulse energy	1.5mJ
Beam quality(M2)	＜2.0
Power adjustment range(%)	10-100 (gradient adjustable)
Repetition frequency(kHz)	5-200(gradient adjustable)
Fiber length	1.5m
Cooling method	Air cooling
Cleaning head parameters
Scanning range (L*W)	0-100mm,continuously adjustable;
Scanning range (L*W)	Dual-axis supports 8 scanning modes:
Scanning frequency	10Hz~300Hz continuously adjustable
Field lens focal length	187mm
Depth of focus	About 5mm
Mechanical parameters
Machine size (LWH)	435260538(LWH)
Machine weight	About 25Kg
Cleaningheadweight (includingisolator)	＜0.75Kg

Core Parts

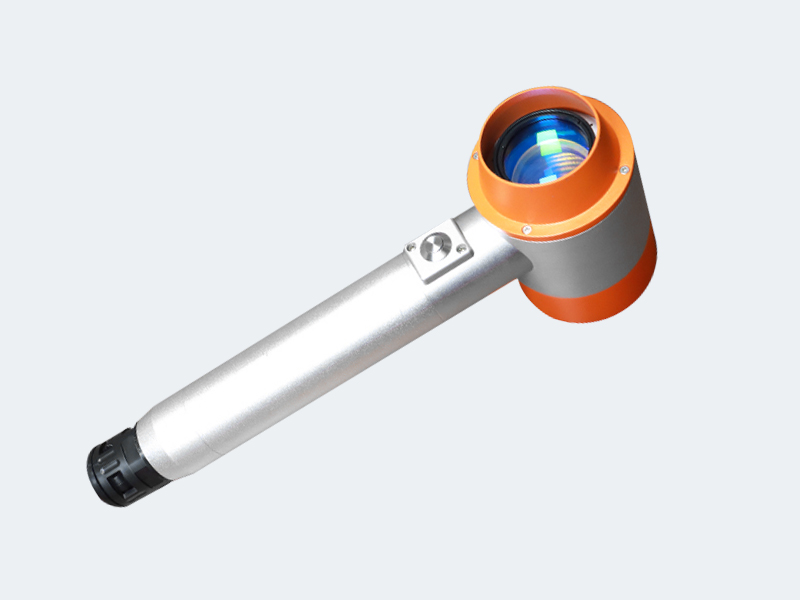

Comfortable handle design

♦ Ergonomic design Handle diameter 42mm,more comfortable

♦ 0.75KG Cleaning head weight

♦ 0-100mm Scanning range

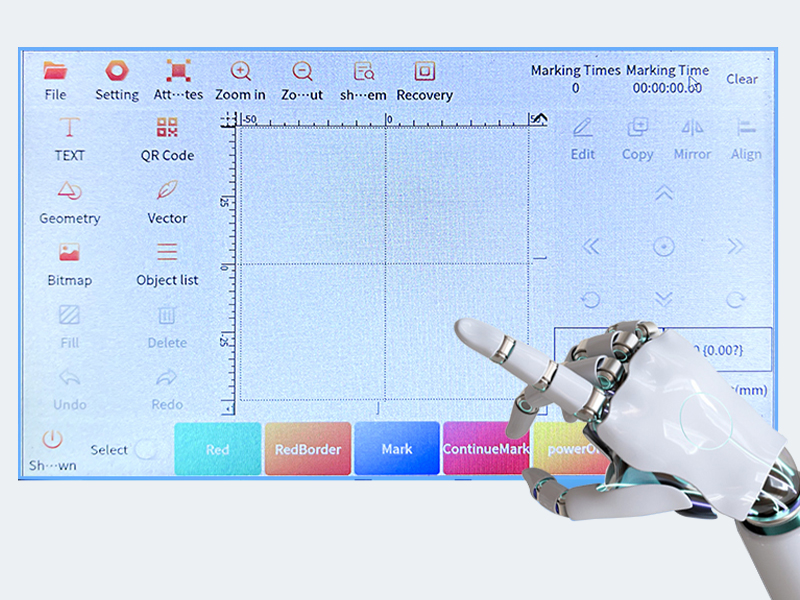

Touch screen Easy to set up and one click to remove pollutants

♦ Independently developed LlNUX system

♦ Master the operation skills in five minutes
