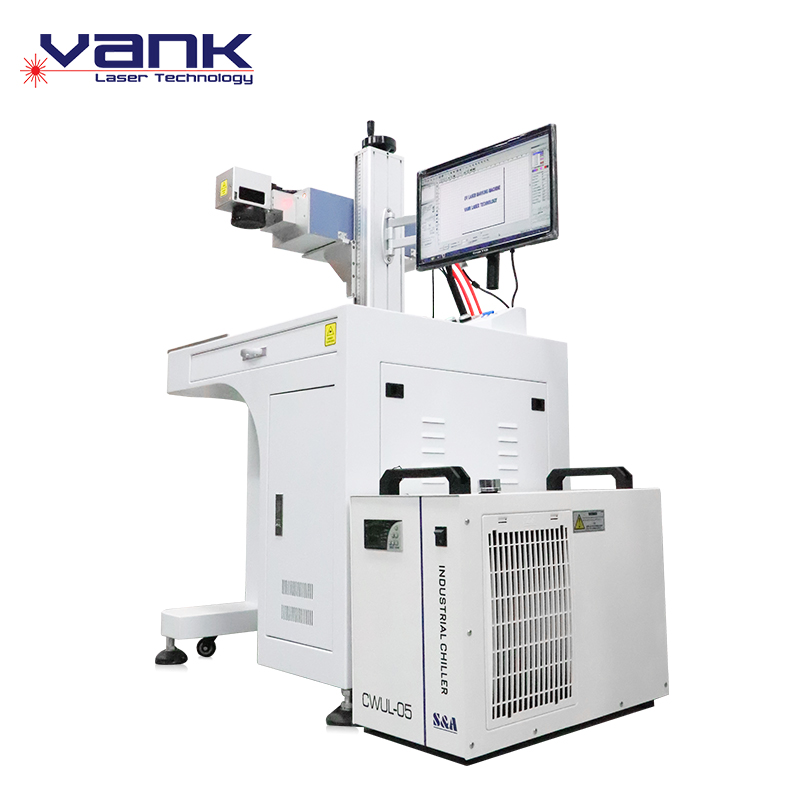

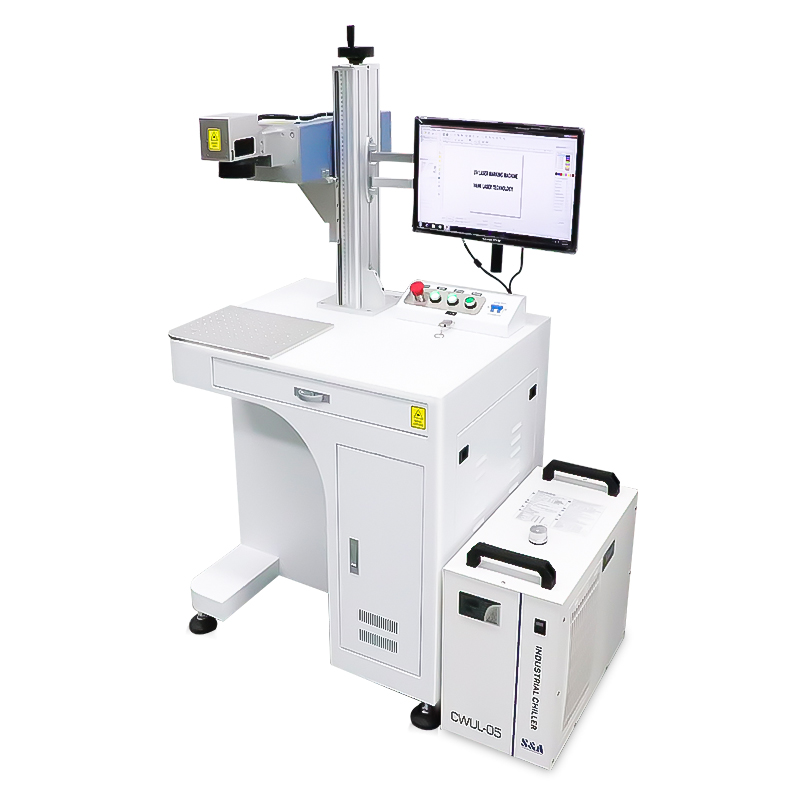

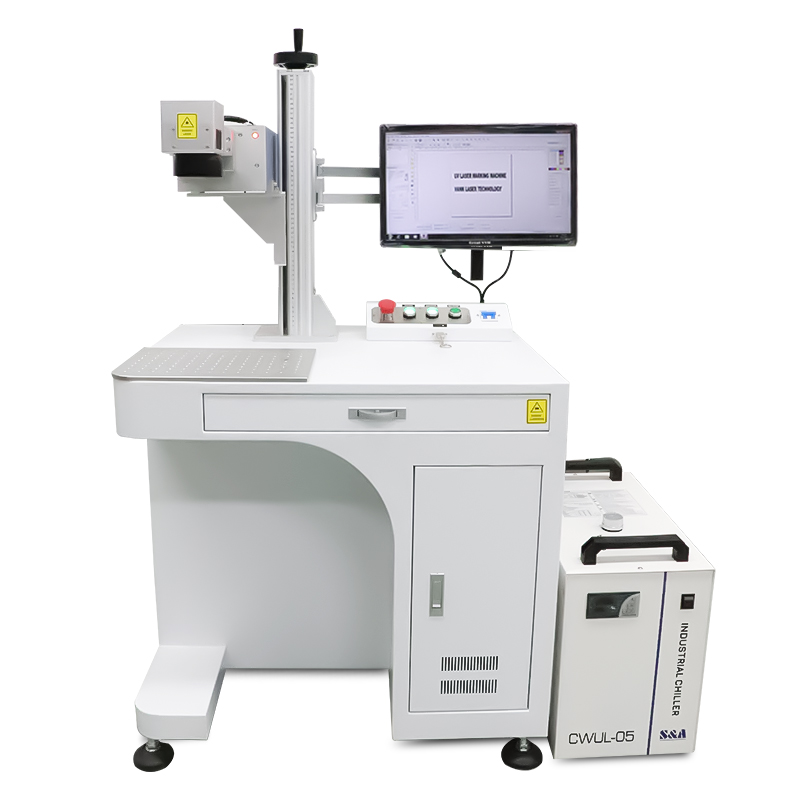

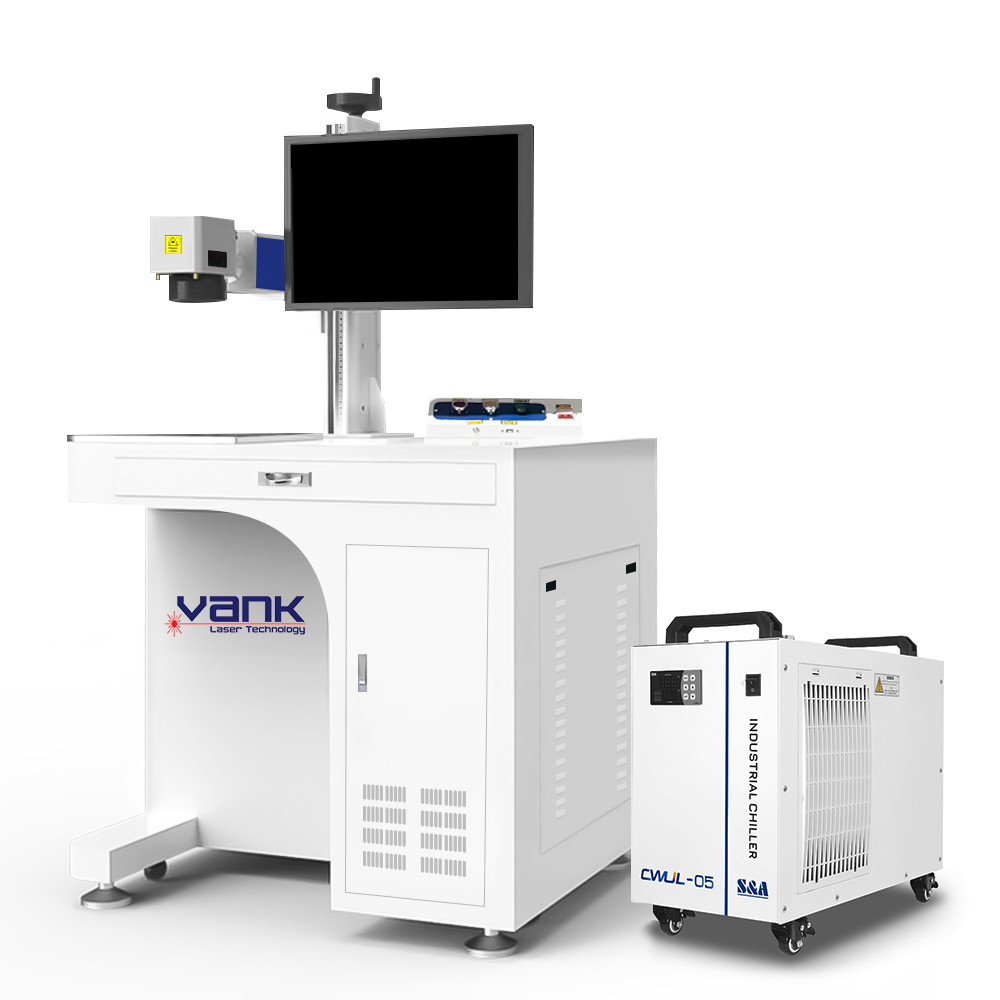

20w-100W UV Laser Marking Machine
Mobile phone screens, LCD screens, optical devices, hardware, glasses...
UV laser is a very different from CO2 laser and fiber laser. UV laser is also known as blue laser beam, which has the ability to engrave with low heat. The light wave or ultraviolet spectrum of UV laser marking machine is one of the main reasons that this technology can be engraved on different materials. It does not heat the surface of the material like fiber laser and CO2 laser marking machines.
• Marking some metals
• Glass marking
• Paper marking
• Garment marking
• Ceramic marking
• Marking on fruits
• Marking on wood
• Leather marking and graving
• Engraving and marking of all plastics
• Marking and engraving of some stones
| Model | Uv Laser Marking Machine |
| Laser Source | Gainlaser |
| Galvanometer | UV Galvo Scanner Head |
| Control Card | EZCAD2 |
| Power Supplies | 5V,15V,24V |
| Z-Axis Control | Manual |
| Cooling System | Water Cooling |
| Optional Lens | 70*70 / 110*110/ 200*200 / 300*300 |
| Power Requirements | AC220V/50HzOr AC110V / 60Hz(According to local electricity supply) |
| Rotary | Optional |
| Pulse width | 10-50ns |
| Warranty | 1 Year |
| Temperature/Humidity | 15~30℃ / 20~80% |
| Laser Power | 3W/5W/10W15W |
| Laser Wavelength | 355nm |
| Beam Quality | M⊃2;＜1.2 |
| Laser Repetition frequency | 30-150kHz |
| Pluse Duration | <15ns |
| Marking Line Speed | ≤5000mm/s |
| Power Consumption | ≤1500w |
| Engraving Depth | ≤0.5mm(lt depends on the material) |
| Repeating Precision | +0.003mm |
| Beam Diameter | ~0.45mm |
| Fiber Power | Adjustablefrom 1% - 100% |
| Operation System | Win7 / Win8 / Win10 / Win11 |
| Marking Format | AI、DXF、PLT、JPG、BMP、Bar Code、QR Code、etc. |
Small size, light weight, very easy to carry
Emergency stop: biggest protect the operator.Split power switchfor Laser Source.Split power switch for Scan Head.Humanized control system, easy to operate,safe and convenient, dust proof design.
High-speed galvanometer
High positioning accuracy, fast marking speed, performance.ction..
It is suitable for surface treatment such as marking and engraving of high flame-retardant materials, especially suitable for marking and micro-hole drilling of food and pharmaceutical packaging materials, high-speed division of glass materials and complex graphics cutting of silicon wafers...
For sensitive materials and low-heat sustaining materials, or for processes requiring very high precision, UV lasers will be the dominant technology.Surface and internal engravings of glass and crystal products.Surface marking of metal, plastic, wood, leather, acrylic, nanometer, cloth, ceramics, purple sand, and coating film. (Actual testing is required due to different composition)Almost all plastic types can be engraved with UV laser, including polyethylene (PE), polyvinyl chloride (PVC), polypropylene (PP), polystyrene (PS), polylactic acid (PLA), polycarbonate (PC), acrylic (PMMA), acetal (polyoxymethylene, POM), nylon (PA), ABS (acrylonitrile butadiene styrene) and other materials. UV laser marking machines can also engrave and mark metal, but not always with the same results as fiber laser marking machines. Fiber lasers can etch deep and sharp effects on metal surfaces, while UV lasers have problems etching paint-covered metals or highly reflective metals like copper. Metal materials that can be engraved by UV laser technology include aluminum, gold, platinum, silver, titanium, brass, stainless steel, etc.
Anhui Codos Laser Technology Development Co., Ltd. is a high-tech enterprise with years of experience in R&D, production, sales and technical maintenance in the laser equipment industry. With the professional laser technology as the backing, the company constantly absorbs advanced technology and design concept, and produces and sells laser equipment suitable for various industrial automation production needs.Our company's main products are optical fiber laser cutting machine, fiber laser marking machine, CO2 laser engraving&cutting machine. All products through the CE certification, safe and reliable product quality. In addition to providing standardized products for our customers, we can also provide customized solutions to meet the needs of different customers.Our laser equipment are widely used in industries of electronic, medical, sheet metal, furniture, advertising, craft gifts, architectural model, industrial mold, luxury, decoration, identification, clothing, leather and other industries.We make the high quality advanced machines, we are providing the best after-sale service in China. And we are also offering the most competitive price to all of the customers. "VANK" is known by more and more people. At present, our products have been exported to many countries and regions such as Europe, South America, North America and so on. We have enjoyed the mutual benefit and will move on, and we hope to establish a long term business relations with more and more oversea customers.
Vanklaser at Dubai FEASPA 2024 exhibition
Vanklaser at Printing United Expo 2023
Vanklaser at 2023 Canton Fair
Product packaging
