| Quantity: | |
|---|---|

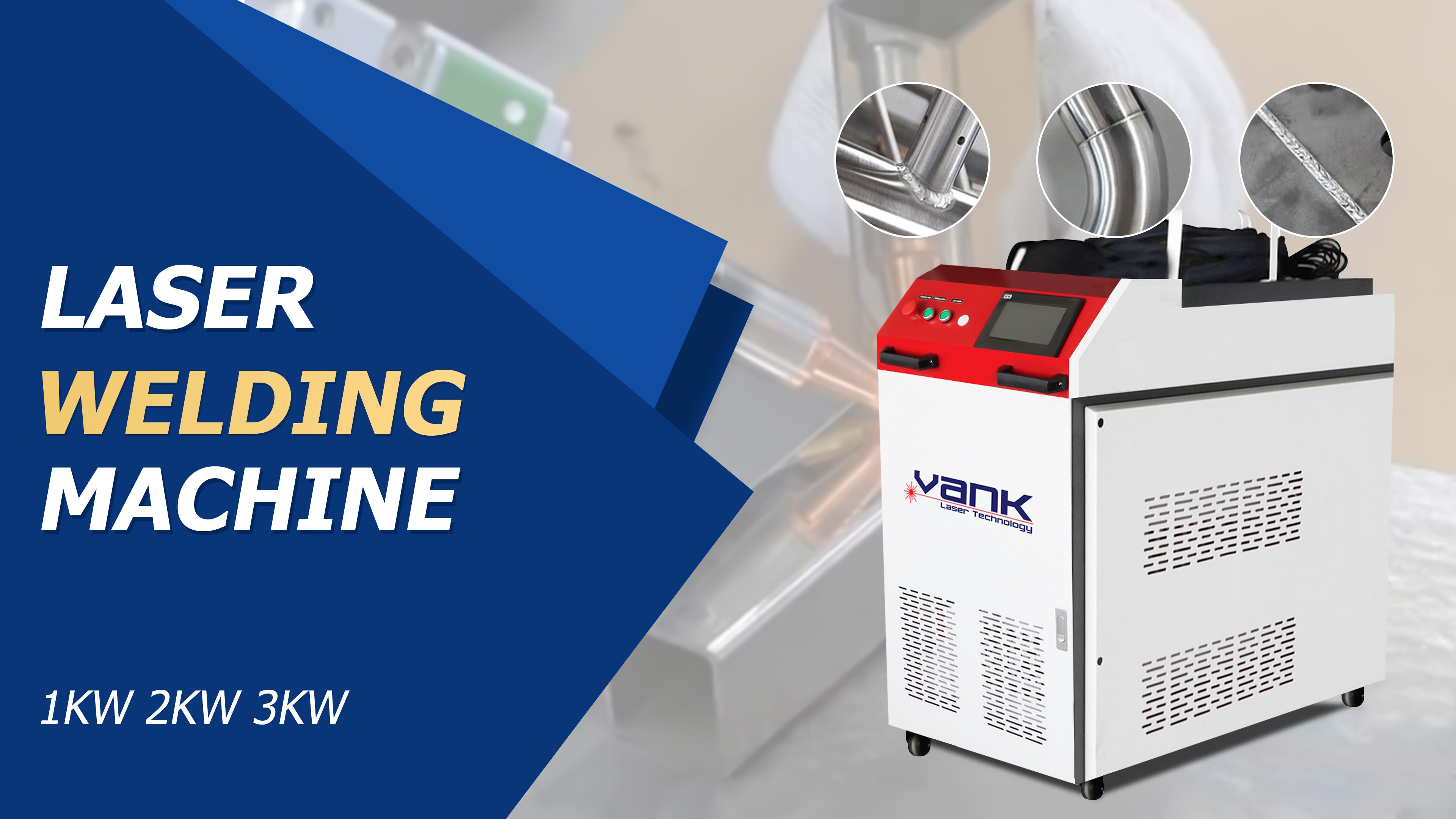

Handheld Fiber Laser Welding Machine
stainless steel, steel plate, and galvanized sheet....
• Handheld laser welder speed is 4-10 times faster than the traditional TIG/MIG welding;
• Easy to operate, no need welding work license, unskilled operator can also weld products beautifully;
• Can weld metal products of different materials and thicknesses;
• Low welding heat, no deformation of the workpiece;
• Smooth and beautiful, which reduces the subsequent grinding process and saves time and cost by laser welder;
Fiber Laser sourse
❖ Adopting famous brands (Raycus/Max), the photoelectric conversion rate is greatly improved, the laser power is enhanced, and it has a better welding effect, and different configurations can be adopted to meet the needs of customers.
Gefasst fiber laser welding head
❖ The product covers welding head/cleaning head and self-developed control system, and sets up multiple safety alarms and main Dynamic safety power-off and light-off settings. It is developed on the basis of the hand-held welding head that our company has produced in large quantities, and has the characteristics of high reliability and strong stability. This product can be adapted to various brands of fiber lasers, and the optical and water-cooled design is optimized so that the laser head can be work stably for a long time at 2000W.
• Laser Weld Carbon Steel
• Laser Weld Stainless Steel
• Laser Weld Aluminum and more
- Welding materials: stainless steel/carbon steel/aluminum alloy/copper/galvanized sheet and other materials can be welded.
- Welding form: Various forms of laser welding such as splicing, lap joint and corner joint can be realized.
- Using environment: Indoor or outdoor welding work, suitable for laser welding of various complex sheet metal/hardware parts.
- Laser welding: fast welding speed, small deformation, beautiful weld seam, no need to polish after welding, saving manpower.
- Advantages: simple operation, flexible and convenient, no need for professional welding knowledge, you can directly operate it.
| Model | FIBER LASER WELDING MACHINE |
| Cooling | Built-in Industrial Chiller（Purified water or distilled water） |
| Cable length | Fiber cable lenght 10m, Operable cable length 8m |
| Weld Head | Handheld Wobble welding head with six weld mode,one cutting mode,changeable nozzle for different welding processing |
| Wobble width | Adjustable 0-5mm |
| Protection Gas | Argon/Nitrogen Pressure 5-10L/min |
| User Interface | For Laser Control:Power,Frequency,Duty cycle. Motor control:working mode,Frequency,Spot width Gas control:Advance,Delay,Proportion |
| Language | Chinese-English-Russian-Korean-Vietnamese |
| Safty | Class 4 laser equipment,Machine with CE,FDA certificate. The machine comes with error alarm function，emergency stop,chiller alarm. |
| Power Requirement | 220±10% V AC, 50/60Hz Customization |
| Operating Ambient Temperature(℃) | 10~40℃ |
| Material | Thickness Single side weld | Thickness Double side weld | Thickness Wire weld |
| Stainless steel | 3mm | 3mm | 2.5mm |
| Galvanized steel | 3mm | 6mm | 2.5mm |
| Mild steel | 3mm | 6mm | 2.5mm |
| Titanium alloy | 3mm | 6mm | 2.5mm |
| Aluminum | 2mm | 4mm | 1.8mm |
| Copper | 1mm | 2mm | 0.8mm |
Anhui Codos Laser Technology Development Co., Ltd. is a high-tech enterprise with years of experience in R&D, production, sales and technical maintenance in the laser equipment industry. With the professional laser technology as the backing, the company constantly absorbs advanced technology and design concept, and produces and sells laser equipment suitable for various industrial automation production needs.Our company's main products are optical fiber laser cutting machine, fiber laser marking machine, CO2 laser engraving&cutting machine. All products through the CE certification, safe and reliable product quality. In addition to providing standardized products for our customers, we can also provide customized solutions to meet the needs of different customers.Our laser equipment are widely used in industries of electronic, medical, sheet metal, furniture, advertising, craft gifts, architectural model, industrial mold, luxury, decoration, identification, clothing, leather and other industries.We make the high quality advanced machines, we are providing the best after-sale service in China. And we are also offering the most competitive price to all of the customers. "VANK" is known by more and more people. At present, our products have been exported to many countries and regions such as Europe, South America, North America and so on. We have enjoyed the mutual benefit and will move on, and we hope to establish a long term business relations with more and more oversea customers.
Vanklaser at Dubai FEASPA 2024 exhibition
Vanklaser at Printing United Expo 2023
Vanklaser at 2023 Canton Fair
