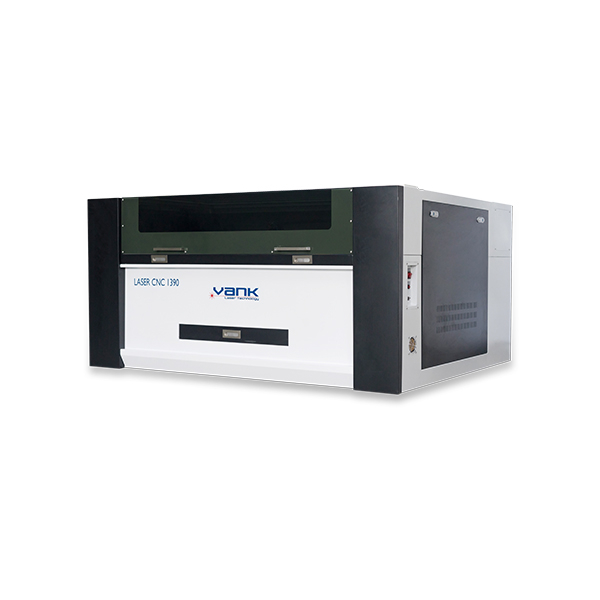

VANKCUT Serie

Availability:
Quantity:
sharethis sharing button

详情


Technical Specifications

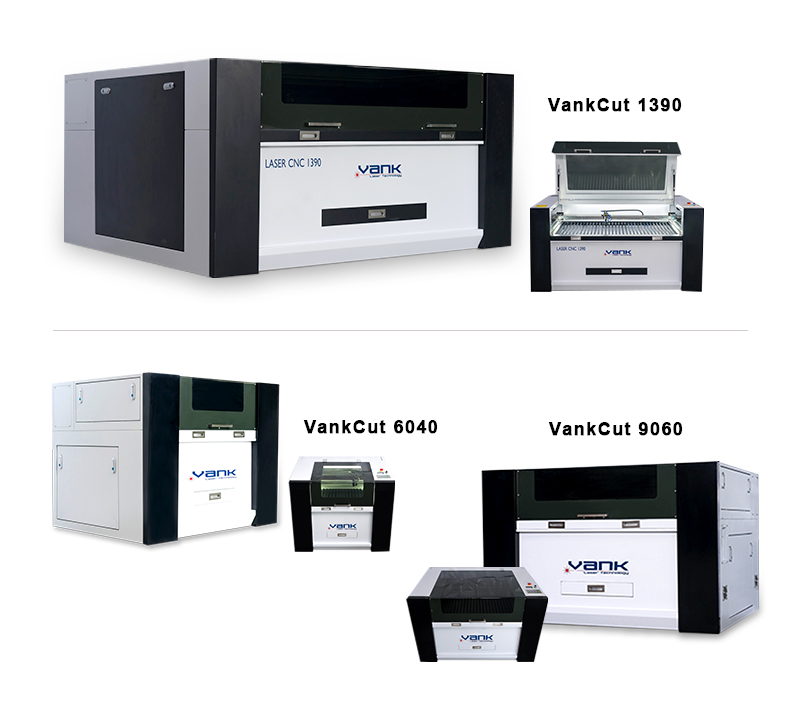

Laser System VankCut 6040 VankCut 9060 VankCut 1390 VankCut 1610
Laser Tube Power 40W/60W/80W 60W/80W/100W 80W-150W 80W-150W
Working Area 600x400mm 900x600mm 1300x900mm 1600x1000mm
Laser Tube  Sealed Glass Co2 Laser Tube,10.6μm
Cooling Type Water Cooling
Engraving Speed 0-60000mm/min
Cutting Speed 0-40000mm/min
Laser Output Control 0-100% set by software
Min.Engraving Size Chinese:2*2mm,English Letter:1*1mm
Highest Scanning Precision 4000DPI
Locating Accuracy ≤±0.01mm
Control Software Touch Panel Control
Graphic Format Supported DST/PLT/BMP/DXF/DWG/AI/HPGL…
Compatible Software CORELDRAW/PHOTOSHOP/AUTOCAD/TAJIMA…
Drive System High-precision 3-phase stepper motor
Auxiliary Equipment Exhaust fan and air exhaust pipe
Power Supply AC220V/220V±10%  50/60Hz
Working Environment Temperature:0-45°C,Humidity 5-95%(No condensate water)



Applications

2 1


If your material is not in the below list, our Applications Team would be happy to assist you to test it.

MaterialsEngraveCut
Wood✔️✔️

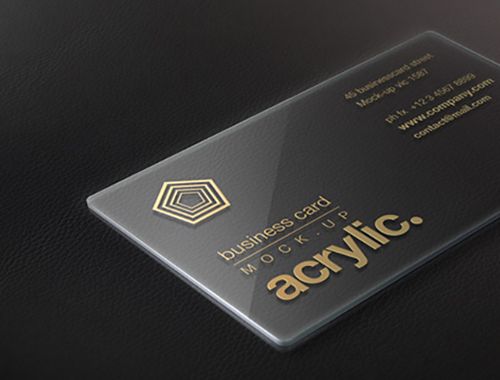

Acrylic✔️✔️
Delrin✔️✔️
Cloth✔️✔️
Leather✔️✔️
Mat Board✔️✔️
Melamine✔️✔️
Paper✔️✔️
Mylar✔️✔️
Pressboard✔️✔️
Rubber✔️✔️
Wood Veneer✔️✔️
Fiberglass✔️✔️
Plastic✔️✔️
Cork✔️✔️
Corian✔️✔️
Twill✔️✖️
Anodized Aluminum✔️✖️
Painted Metals✔️✖️
Tile✔️✖️
Glass✔️✖️
Coated Metals✔️✖️
Ceramics✔️✖️
Marble✔️✖️
Stainless Steel*✖️
Brass*✖️
Titanium*✖️
Bare Metal*✖️

* means the laser cannot engrave directly, you will need the help of the “thermark spray”, you can visit www.vanklaser.com for more information.

1

2

3

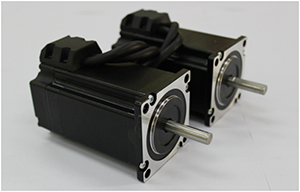

Servo Motors

1000mm/s speed for engravingphoto, super smooth vector cutting quality

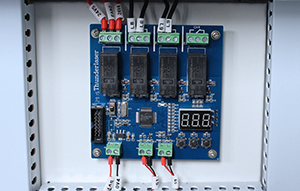

Smart board

Control the exhaust fan,air assist, and alarm lamp automaticly, energy saving

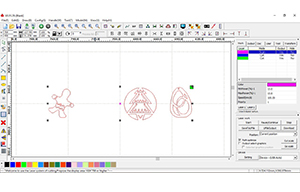

Laser software

RDWorksV8 laser software.


5

6

7

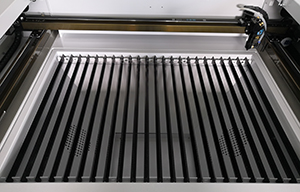

Aluminum Blade Cutting Table

Reduce the influence of the reflection of laser.

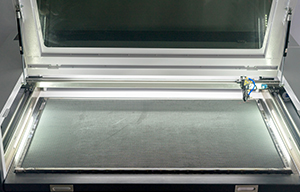

Honeycomb Table

Reduces underside reflections

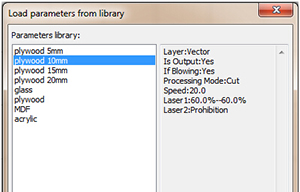

Parameter Library

Help you to save times.

9

10

11

3D Engrave

Engrave high quality 3D photos directly.

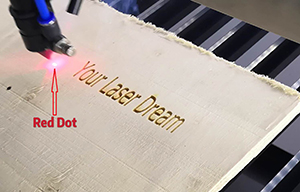

Visible Red Dot Pointer

Make the laser beam “visible”.

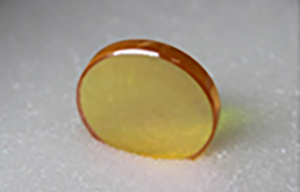

High quality optics

High quality optics.

13

14

15

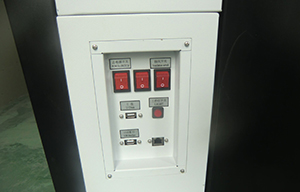

Connection ways

High-speed Ethernet line or the USB cable line

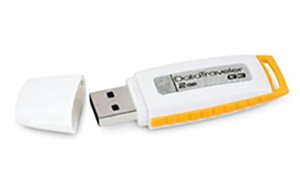

USB disk interface

Thunder laser system supports the USB disk loading.

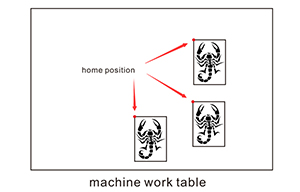

Free Home position

Freely change the starting position.

17

18

19

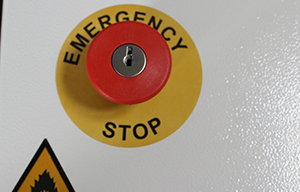

Emergency stop

Turn off the machine immediately when there is an accident.

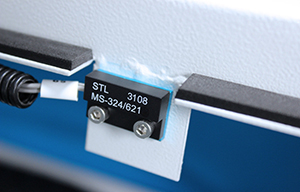

Open flap protection

Laser will stop working if you open the front cover.

Water protection

Laser will stop working if the water cooling system is not working.

20

21

22

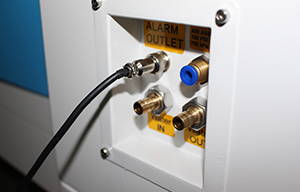

Air Assist

Blowing air to prevent the material being burned

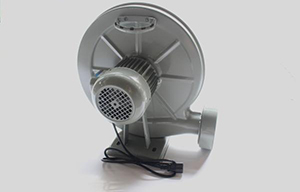

Exhaust System

Ensure the work pieces and laser cutter machine inside be clean.

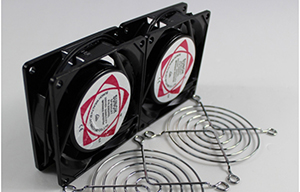

Low-noise cooling fan

Operate the laser in a quiet and comfortable surroundings.

23

4 8

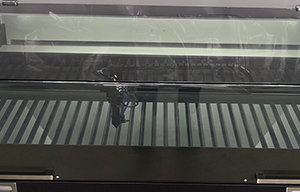

360º full view lucid acrylic cover

Observe the working status at any time.

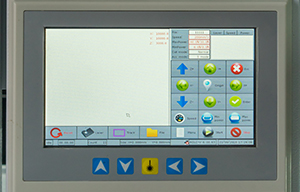

LCD Touch Panel


Set speed, power, and more directly from the LCD panel.

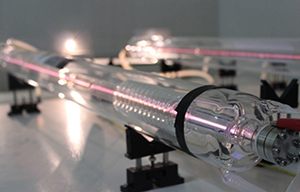

High Quality Laser Tube

Every laser tube must pass the strict quality control test.

12 16 20

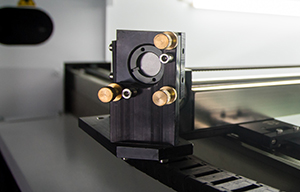

Mirror mount

Vanklaser easily re-adjusting 3D.

Large buffer memory

You can take the file directly from the memory.

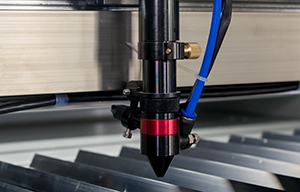

Standard laser head

It is the most often used head.

23

High quality rails

Keep the engraving/cutting precise and very durable.
