VankCut-1390 CO2 laser cutting machine for acrylic wood
Home » Products » CO2 Laser Machines » VankCut-1390 CO2 laser cutting machine for acrylic wood

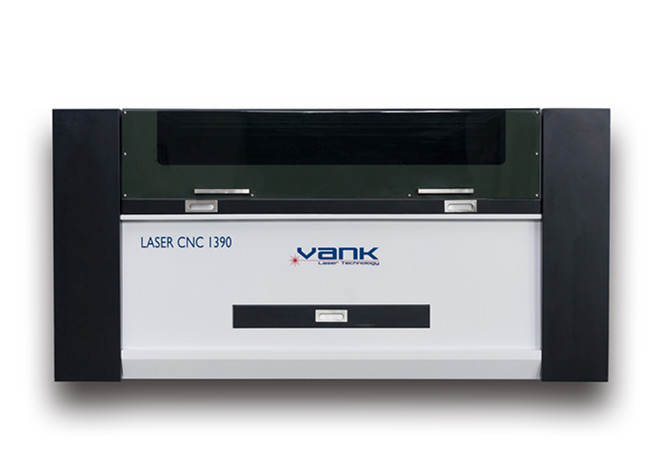

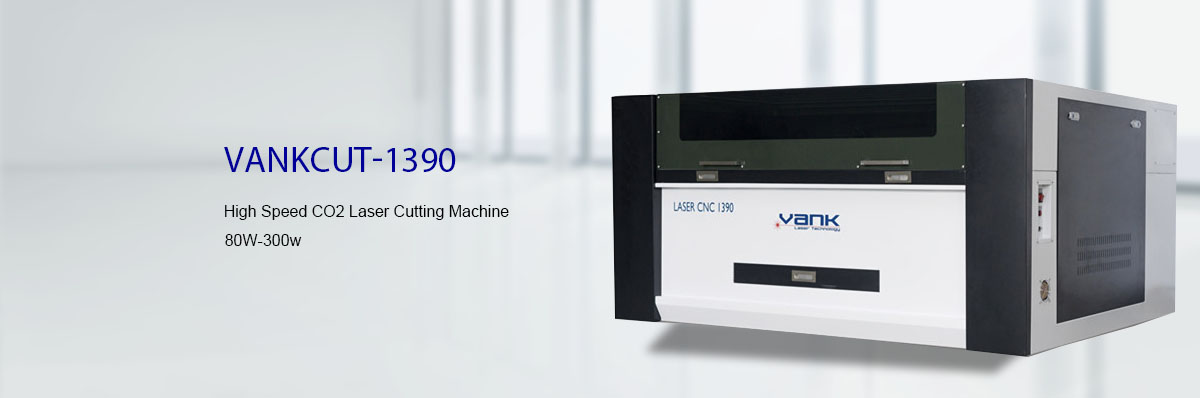

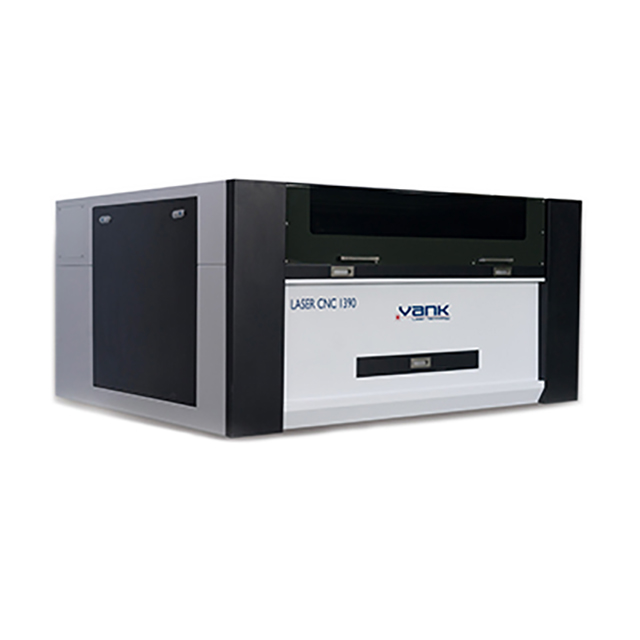

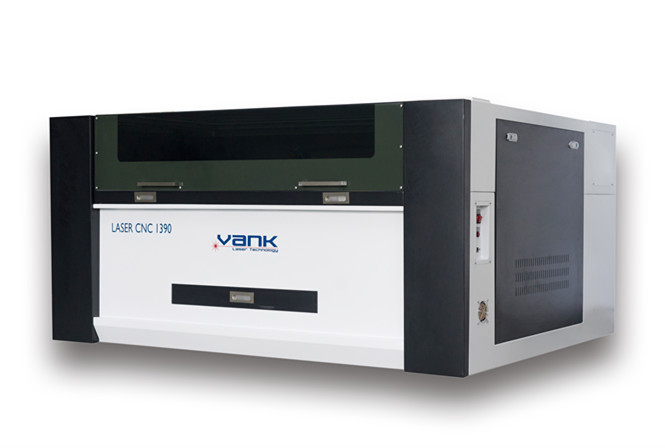

VankCut-1390 CO2 laser cutting machine for acrylic wood

Quantity:


1390

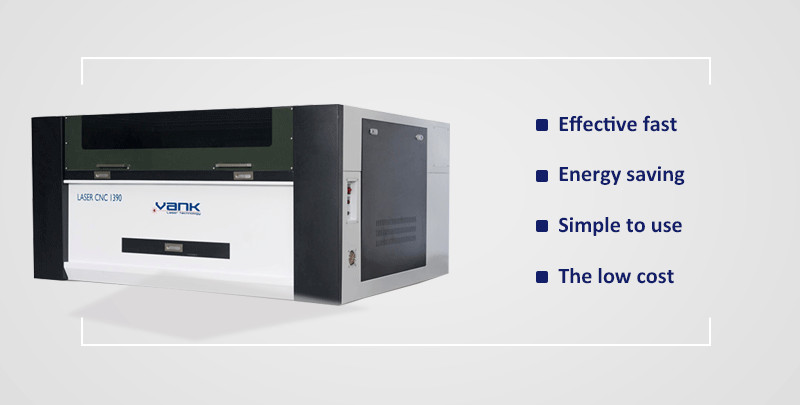

——PRODUCT ADVANTAGES——

2

90602_02




——PRODUCT FEATURES——



5

6

7

8




——PRODUCT PARAMETERS——

Laser System VankCut 1390
Laser Tube Power 60W/80W/100W/120W/150W
Working Area 1300x900mm
Laser Tube Sealed Glass Co2 Laser Tube,10.6μm
Cooling Type Water Cooling
Engraving Speed 0-60000mm/min
Cutting Speed 0-40000mm/min
Laser Output Control 0-100% set by software
Min.Engraving SizeChinese 2*2mm,English Letter:1*1mm
Highest Scanning Precision 4000DPI
Locating Accuracy ≤±0.01mm
Control Software Touch Panel Control
Graphic Format Supported DST/PLT/BMP/DXF/DWG/AI/HPGL
Compatible Software CORELDRAW/PHOTOSHOP/AUTOCAD/TAJIMA
Drive System High-precision 3-phase stepper motor
Auxiliary Equipment Exhaust fan and air exhaust pipe
Power Supply AC220V/220V±10%  50/60Hz
Working Environment Temperature:0-45°C,Humidity 5-95%(No condensate water)



——PRODUCT DESCRIPTION——


What can we do with Vankcut-1390?

Applicable materials
Wood, bamboo, jade, marble, organic glass, crystal, plastic, garments, paper, leather, rubber, ceramic, glass and other nonmetal materials.

Applicable industries
Advertisement, arts and crafts, leather, toys, garments, model, building upholster, computerized embroidery and clipping, packaging and paper industry.



What are the advantages of Vankcut-1390?

Laser engraving cutting offers a huge number of advantages to its users:
Laser engraving cutting allows for great control over beam intensity, length and heat output
Laser engraving cutting uses an extremely low level of power consumption, typically around 10Kw as compared to 50Kw used by other processes
Laser engraving cutting can work with a huge range of materials
Laser engraving cutting is a non-contact process, meaning that the laser beam itself never actually touches the material it works with.

This reduces heat damage to the surrounding area, which increases productivity by decreasing downtime and repair costs

Laser engraving cutting machines have very low maintenance costs and inexpensive parts for replacement

Laser engraving cutting delivers precise cuts with smooth finishes

Laser engraving cutting can switch quickly between multiple applications and setups, reducing time wastage and the need for multiple machines

With the above advantages, it is easy to see why laser cutting is becoming so widely use


——APPLICATION SHOW——


6040_看图王


Our laser equipment are widely used in industries of electronic, medical, furniture, advertising, craft gifts,

architectural model, industrial mold, luxury, decoration, identification, clothing, leather and other industries.


1

2

3

Servo Motors

1000mm/s speed for engraving

photo, super smooth vector

cutting quality.

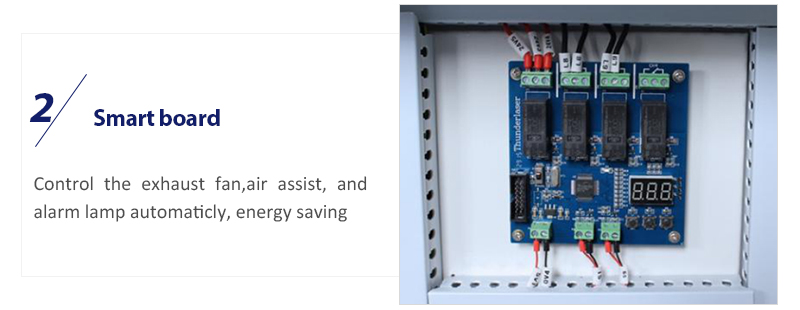

Smart board

Control the exhaust fan,air assist, and alarm lamp automaticly, energy saving.

Laser software

RDWorksV8 laser software.

5 6 7

Aluminum Blade Cutting Tabl

Reduce the influence of the reflection of laser.

Honeycomb Table

Reduces underside reflections.

Parameter Library

Help you to save times.

9

10

11

3D Engrave

Engrave high quality 3D photos directly

Visible Red Dot Pointer

Make the laser beam “visible”.

High quality optics

High quality optics.

13

14

16

Connection ways

High-speed Ethernet line or the USB cable line

USB disk interface

Thunder laser system supports the USB disk loading

Free Home position

Freely change the starting position.

18

19

20

Emergency stop

Turn off the machine immediately when there is an accident.

Open flap protection

Laser will stop working if you open the front cover.

Water protection

Laser will stop working if the water cooling system is not working.

22

23

24

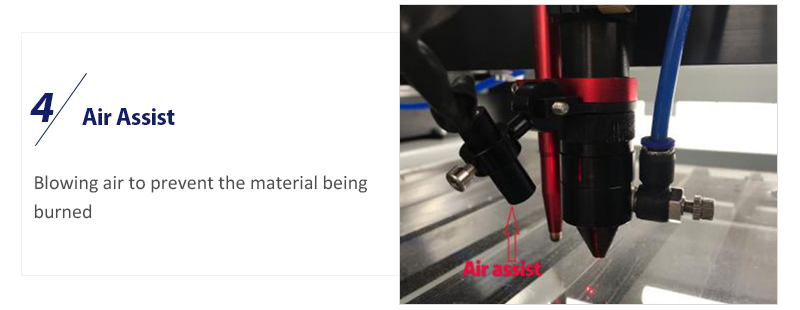

Air Assist

Blowing air to prevent the material being burned.

Exhaust System

Ensure the work pieces and laser cutter machine inside be clean.

Low-noise cooling fan

Operate the laser in a quiet and comfortable surroundings.

27

IMG_1422 8

360º full view lucid acrylic cover

Observe the working status at any time

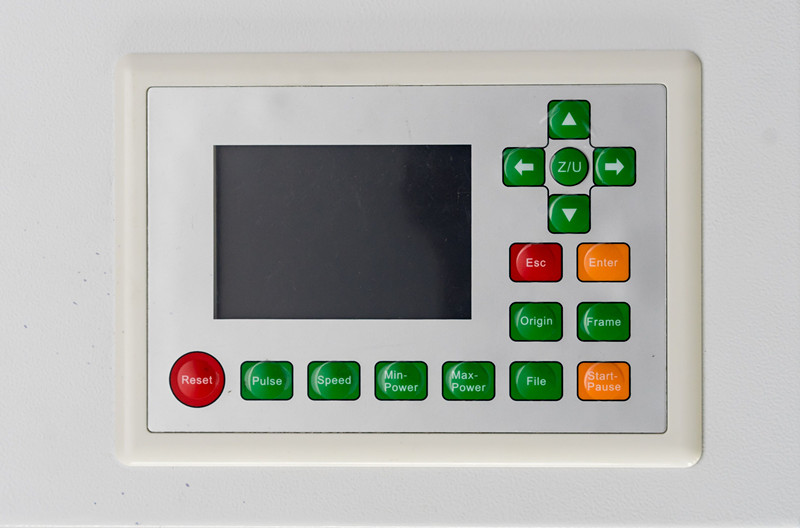

Rdworks Control Panel

Set speed, power, and more directly from the control panel.

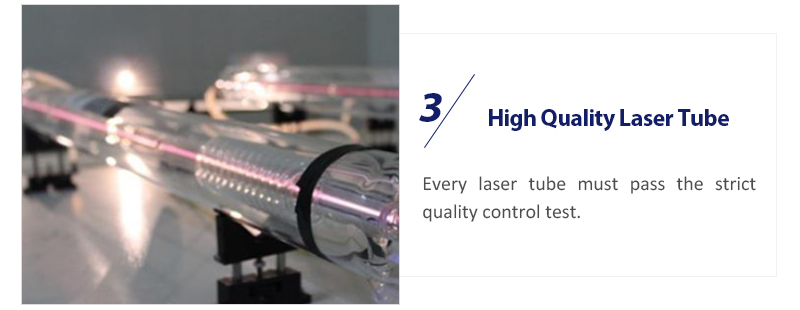

High Quality Laser Tube

Every laser tube must pass the strict quality control test.

12 26 21

Mirror mount

Vanklaser easily re-adjusting 3D mirror mounts.

High quality rails

Keep the engraving/cutting precise and very durable.

Standard laser head

It is the most often used head.
