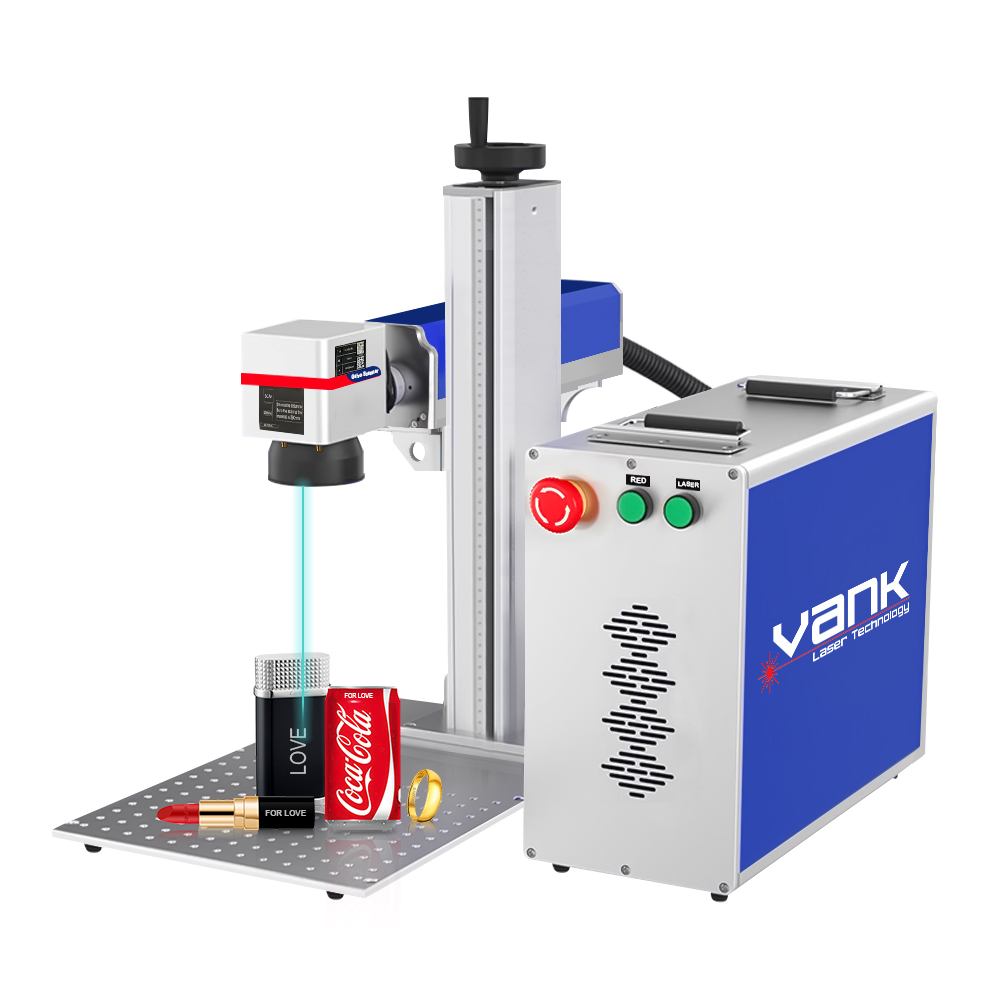

Vanklaser-Split Fiber Laser Marking Machine

Metal,jewelry Laser Engraving Machine
Working life 100,000 hours
Availability:
Quantity:
sharethis sharing button


20w -100w Fiber Laser Marking Machine for Ring Jewelry

Any metal (including rare metals), stainless steel, alumina material, engineering plastics...



❖ FIBER LASER MARKING MACHINE APPLICABLE INDUSTRY

1) Jewelry & Accessories           :  Rings, Pendant, Bracelet, Necklace, Sunglasses, Watches etc.

2) Electronic Components         :  Phone,IPAD,Resistors,Capacitors,Chips,Printed Circuit Boards, etc.

3) Mechanical Parts                   :  Bearings, Gears, Standard Parts, Motor, etc.

4) Electronics                             :  Iphone, Ipad, Ipod, keyboard and more standard parts.

5) Instrument                             :  Panel Board, Nameplates, Precision equipment, etc .

6) Hardware Tools                      :  Knives, Tools, Measuring Tools, Cutting Tools, etc.

7) Automobile Parts                   :  Pistons&Rings, Gears, Shafts,Bearings,Clutch,Lights.

8) Handicrafts                            :  Zipper, Key Holder, Souvenir,etc.

9) 3D engraving                         :  coin, mold, jewelry.


Core Parts


1

Laser Source

Raycus/MAX/IPG/JPT, multiplechoice.  Different brands, differentlaser power are available.Thehigher power, the faster markingspeed.Also supply cO2 laser, Uvlaser, MOPA laser, green laser, etc.

3

Galvo Lens / Scan Head

Two high speed motor controlreflect lens inside the head,which give the machine max7000mm/smarking speed.Supply different brand andmode, also could make the auto focus type, and the 3D type.

4

Work Table

All machine standard with thealuminum work table, whichcould fix the tools.Option table:2D working table, 3D working table,Cutting Work table for jewelry,also could customize the specialwork table for meet your needs.


2

Field Lens

110*110mm, 175*175mm,200*200mm (standard),3000* 300mm, different lens.Same laser power with the smaller lens will have the faster marking speed. Alsosupply the other size.

5

Rotary

Different diameter rotary with 50mm,80mm, 100mm, 150mm and the othersize for meetcustomer's need.Have specialrotary for Ring inside and outside marking. Special rotary for Pens,or bulb. We also could customizethe other type of rotary for customer.

6

EZCAD2

Emergency stop: biggest protect the operator.Split power switchfor Laser Source.Split powerswitch for Scan Head.Humanizedcontrol system, easy to operate,safe and convenient, dust proof design.


Smaple

-Applicable materials

Any metal (including rare metals), stainless steel, alumina material, engineering plastics, electroplating materials, coating materials, spraying materials, plastic rubber, epoxy resin, ceramics, etc.


-Applicable industries

Clothing,embroidery cutting, fabric toys, paper products, leather goods industry, model industry, etc.require largeformat material cutting, carving and other industries.


11

Coin Marking

33

Lighter Marking

44

U disk Marking

22

Nameplate Marking

77 Component      Marking
88

Bottle cap Marking

66

Jewelry Marking

55

Tweezers Marking

PRODUCT PARAMETERS


Model Fiber Laser Marking Machine
Working Area 300*300mm
Laser Power 20W/30W/50W/70W/100W
Laser Power Supply MAX/RAYCUS/JPT
Control Card Original BJJCZ Fiber Control Board
Software EZCAD2
Power Supplies 5V,15V,  24V
optional Lens 70*70/ 110*110/ 200*200
Power Requirements AC220V / 50Hz Or AC110V/ 60Hz(According to local electricity supply)
Cooling Mode Air Cooling
Rotary Optional
Field Lens Brand Wavelength
Mininum Character 0.1mm
Laser Wavelength 1064 nm
Laser Repetition frequency 40-60kHz
Pluse Duration 130-160ns
Marking Line Speed ≤7000mm/s
Beam Quality M⊃2;<1.2
Positioning Accuracy +0.1 um
Power Consumption ≤800w
Fiber Power Adjustable from 1% -100%
Operation System Win7 / Win8 / Win10 / Win11
Marking Format AI、DXF、PLT、JPG、BMP、Bar Code、QR Code、etc.
Temperature/Humidity 15~30℃ / 20~80%
Warranty 1 Year
Pulse width 10-50ns


Company Profile

Anhui Codos Laser Technology Development Co., Ltd. is a high-tech enterprise with years of experience in R&D, production, sales and technical maintenance in the laser equipment industry. With the professional laser technology as the backing, the company constantly absorbs advanced technology and design concept, and produces and sells laser equipment suitable for various industrial automation production needs.Our company's main products are optical fiber laser cutting machine, fiber laser marking machine, CO2 laser engraving&cutting machine. All products through the CE certification, safe and reliable product quality. In addition to providing standardized products for our customers, we can also provide customized solutions to meet the needs of different customers.Our laser equipment are widely used in industries of electronic, medical, sheet metal, furniture, advertising, craft gifts, architectural model, industrial mold, luxury, decoration, identification, clothing, leather and other industries.We make the high quality advanced machines, we are providing the best after-sale service in China. And we are also offering the most competitive price to all of the customers. "VANK" is known by more and more people. At present, our products have been exported to many countries and regions such as Europe, South America, North America and so on. We have enjoyed the mutual benefit and will move on, and we hope to establish a long term business relations with more and more oversea customers.

photobank (1)

photobank

Exhibition
5
6
7

Vanklaser at Dubai FEASPA 2024 exhibition

2
3
4

Vanklaser at Printing United Expo 2023

2
3
4

 Vanklaser at 2023 Canton Fair

2
3
4

Product packaging


Heba542aac6104c088006dd54b0cf45d1A


FAQ


1.I am looking for CO2 laser machine, any recommendation?
A: Hi, there. Thank you for your concern about our laser cutting machine. It's essential to mention us about your cutting requests (materials, thickness, application and your expectation), our sales experts provides customized consulting service in term of your demand.
2.When I got this machine, but I don't know how to use it. What should I do?
A:We will send video and English manual with the machine. If you still have some doubts, we can talk by telephone or skype and e-mail.
3.How can I get the sample to check you quality ?
A:If you want to marking sample to check the quality, we can help you do this. first you need to provide the logo or design to us, free mark samples can be provided.
4.Do the machine can be customized according my requirements?
A:Sure,we have a strong technical team and have rich experience. Our goal is to make you satisfied.
5:Can you arrange the shipment for me?
A:We can arrange the shipment for our clients accordingly by sea and air. Trading terms FOB, CIF, EXW are available.
6:Why should you choose us?
We have the high attention and faster response of post-sales in 24hrs. We offer two years-warranty for all products to ensure their activities and after-sales.
