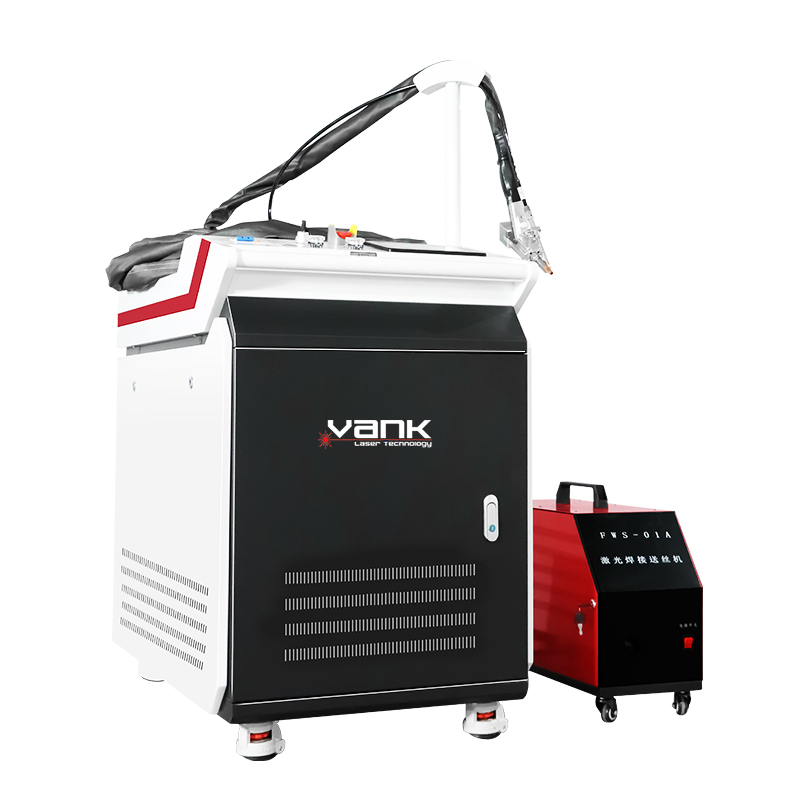

Reci Handheld Fiber Laser Welding Machine
stainless steel, steel plate, and galvanized sheet....
• Easy operating need no training.
• Fast welding speed, 2~10 times faster than traditional welding.
• Welding seam beautiful smooth and beautiful, don’t need polish, save your time.
• No deformation or welding scar, firm welding of the workpiece.
• Laser welding has less consumables and long service life.
• Safer, more environmentally friendly.
• The advantage of laser welding is that the thickness of the thin plate is less than 3mm.
• The welding volume is relatively large, suitable for the production line is 6-8 hours a day.
• The machine has wheels, easy to move anywhere in factory you need
Compare with Traditional Welding
Accurate positioning by infrared rayUsed for position calibration of welding head and position verification duringwelding, the welding position is accurateEnsure that the weld seam is beautiful, no welder certificate is needed and you can get started with zero experience；
Handheld Laser welding machine Traditional welding Welding speed 4-10x faster Common HeatAffected zone small large Deformation small large Bond strength with base material Excellent Common Subsequent processing No or very little polish Polish Consumables Little any Operation difficulty Simple Complicate Operator safety Safe Not safe Impact on the environment Enviromental Pollutional Welding fault tolerance Good Good Pendular welding yes No Adjustable spot width yes No Welding quality contrast Excellent Bad Adjustable Welding mode Six Mode No
Why You Choose A Laser Welding Machine Rather Than A Traditional One?
The hand-held laser welding machine replaces the previous fixed optical path with a hand-held welding gun. Hand-held welding is flexible and convenient, the welding distance is longer, and it overcomes thelimitations of the workbench space. Mainly for large workpieces, fixed positions such as inner right angle, outer right angle, flat surface welding, small heat affected area during welding,small deformation, large welding depth, and firm welding. It is a new and more flexible welding process for long-distance welding of large workpieces.
Specifications
Model FIBER LASER WELDING MACHINE Cooling Built-in Industrial Chiller（Purified water or distilled water） Cable length Fiber cable lenght 10m, Operable cable length 8m Weld Head Handheld Wobble welding head with six weld mode,one cutting mode,changeable nozzle for different welding processing Wobble width Adjustable 0-5mm Protection Gas Argon/Nitrogen Pressure 5-10L/min User Interface For Laser Control:Power,Frequency,Duty cycle. Motor control:working mode,Frequency,Spot width Gas control:Advance,Delay,Proportion Language Chinese-English-Russian-Korean-Vietnamese Safty Class 4 laser equipment,Machine with CE,FDA certificate. The machine comes with error alarm function，emergency stop,chiller alarm. Power Requirement 220±10% V AC, 50/60Hz Customization Operating Ambient Temperature(℃) 10~40℃

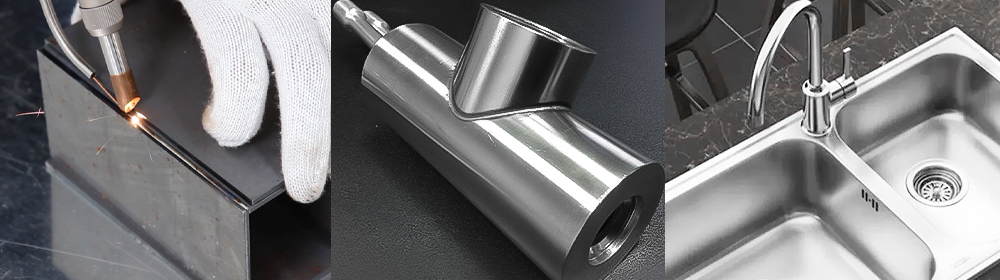

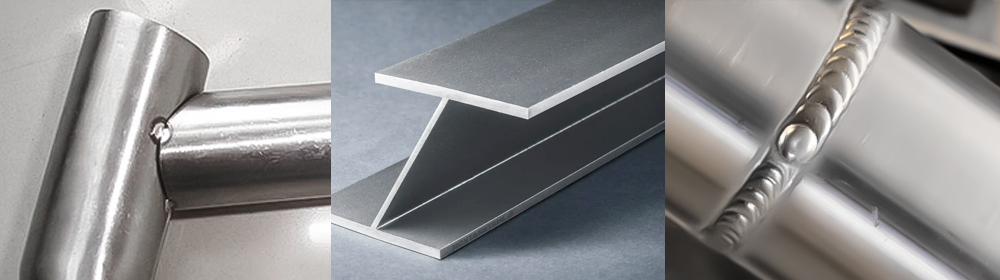

Application Material
Gold and silver, sanitary ware, food packaging, tobacco, beer, wine labels, clocks, glasses, auto parts, precision paper materials, electronic hardware and other high-end fields, such as clocks and watches are suitable for precision instruments, electronic accessories, household appliances, mobile communications, Watches, clothing, jewelry and other industries. It is used for welding stainless steel, carbon steel, copper, aluminum, gold, silver, chromium, nickel, titanium, platinum and other metals or alloys, and can also be used for welding between various dissimilar materials.
Core Parts

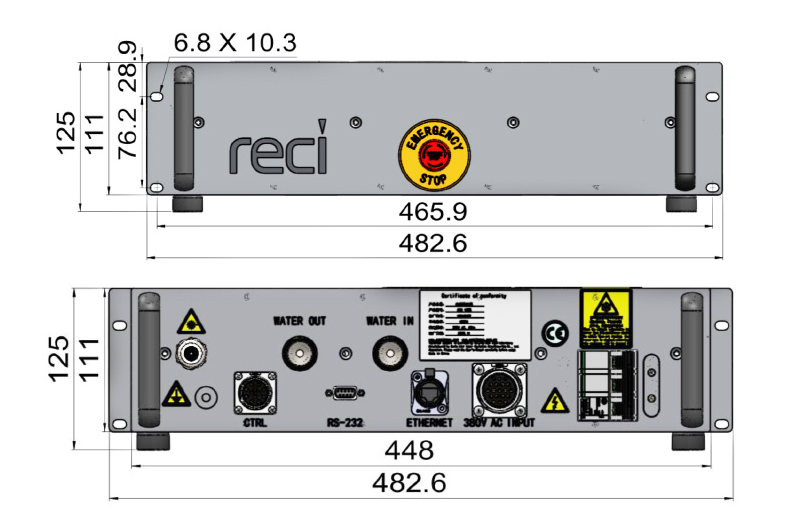

RECI Fiber Laser Source
❖ Multiple anti-hyperresponse capabilities
❖ High electro-optical conversion efficiency
❖ Wide frequency modulation range
❖ Excellent Beam Quality

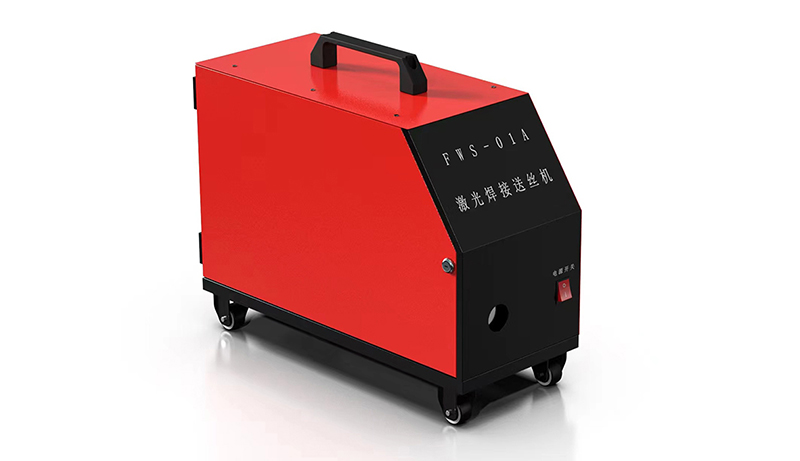

Automatic wire feeding device
❖ Automatic mode and manual mode. If there is a gap within 0.5 mm, the wire feeder will not be selected. If the gap is greater than 0.5 mm, a wire feeding device must be selected. If the gap is 0.6mm, a 0.9mm wire can be used. If the gap is 0.8mm, 1.1mm wire can be used. If the gap is 1.0mm, you can use 1.3mm
RECI Fiber Laser Source

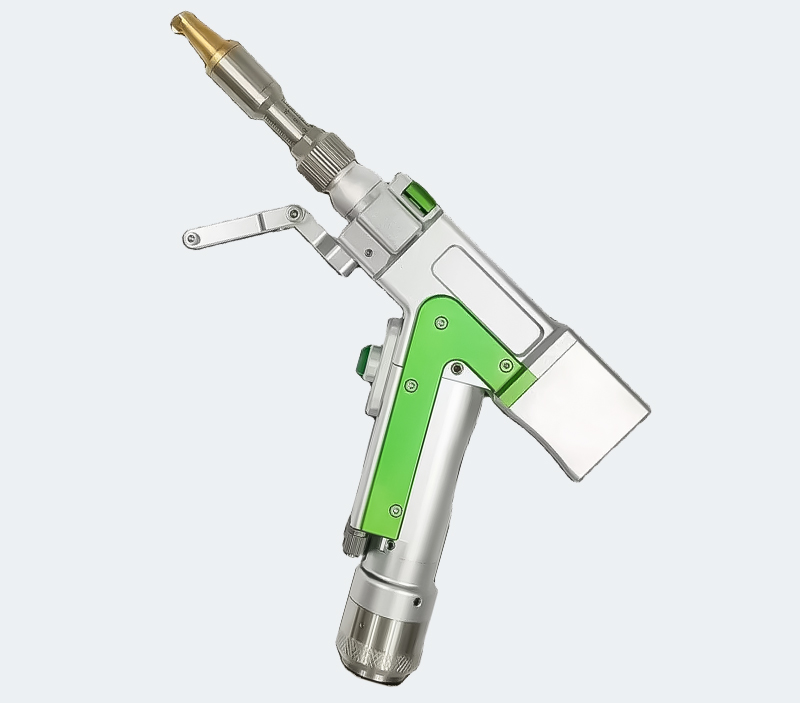

❖ The handheld laser head has a simple appearance, is small and light, and can be used by hand for a long time. Integrated design of button and handle, easy to use. The built-in scanning system uses small high-speed motors and drivers. The main body is processed and formed as a whole, which is strong and dustproof, stable and durable. Can switch between cleaning and cutting according to different scenarios, convenient and easy to operate.
Laser Welding Capacity
Material Thickness Single side weld Thickness Double side weld Thickness Wire weld Stainless steel 3mm 3mm 2.5mm Galvanized steel 3mm 6mm 2.5mm Mild steel 3mm 6mm 2.5mm Titanium alloy 3mm 6mm 2.5mm Aluminum 2mm 4mm 1.8mm Copper 1mm 2mm 0.8mm
Company ProfileAnhui Codos Laser Technology Development Co., Ltd. is a high-tech enterprise with years of experience in R&D, production, sales and technical maintenance in the laser equipment industry. With the professional laser technology as the backing, the company constantly absorbs advanced technology and design concept, and produces and sells laser equipment suitable for various industrial automation production needs.Our company's main products are optical fiber laser cutting machine, fiber laser marking machine, CO2 laser engraving&cutting machine. All products through the CE certification, safe and reliable product quality. In addition to providing standardized products for our customers, we can also provide customized solutions to meet the needs of different customers.Our laser equipment are widely used in industries of electronic, medical, sheet metal, furniture, advertising, craft gifts, architectural model, industrial mold, luxury, decoration, identification, clothing, leather and other industries.We make the high quality advanced machines, we are providing the best after-sale service in China. And we are also offering the most competitive price to all of the customers. "VANK" is known by more and more people. At present, our products have been exported to many countries and regions such as Europe, South America, North America and so on. We have enjoyed the mutual benefit and will move on, and we hope to establish a long term business relations with more and more oversea customers.
Exhibition
Product packaging
FAQ
