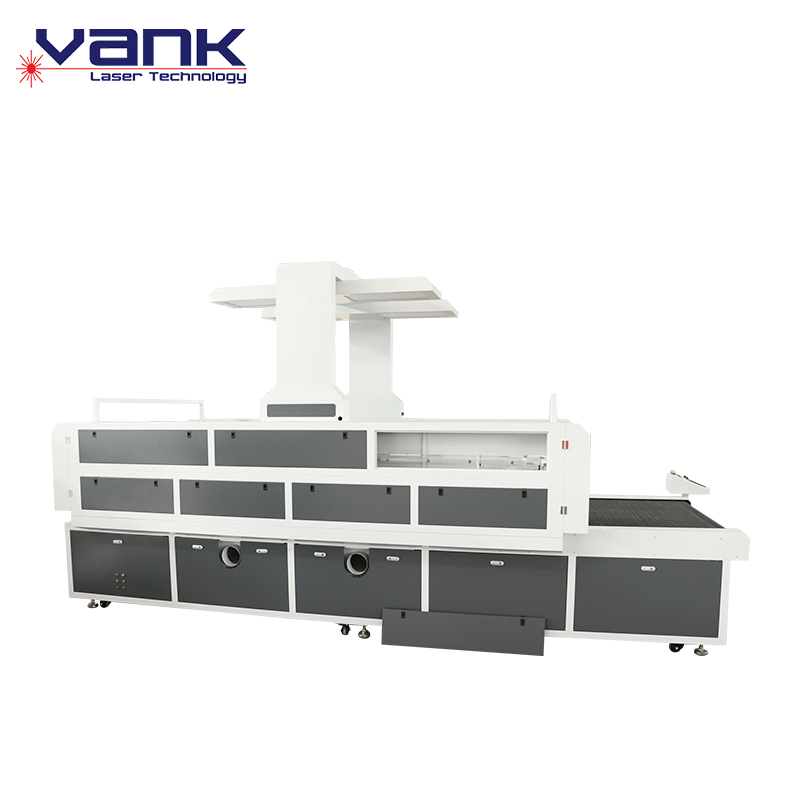

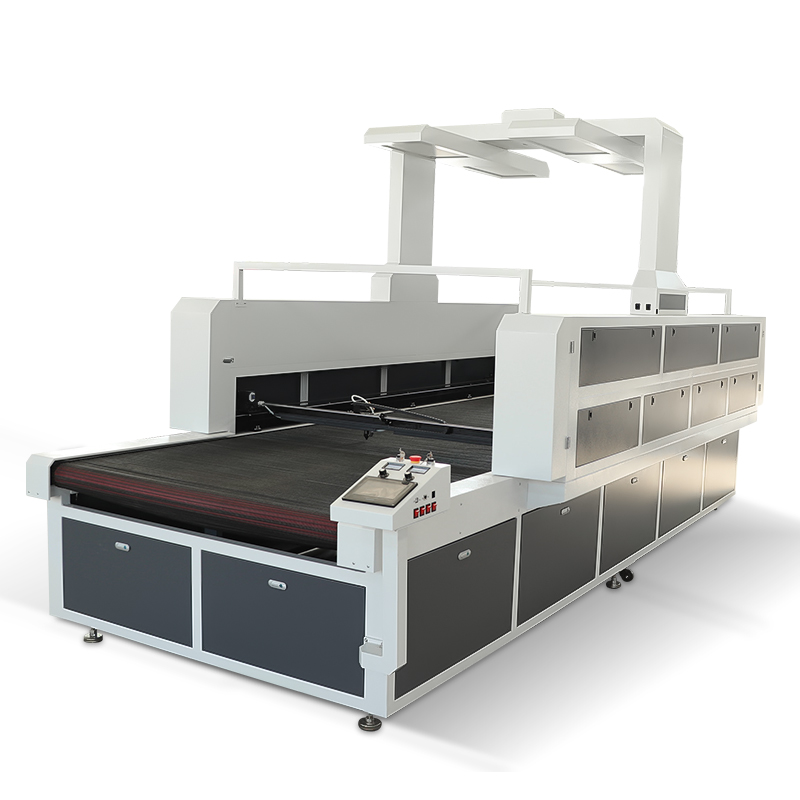

AUTO-FEEDING VISION FABRIC LASER CUTTING MACHINE
Polyester, nylon, nonwoven and woven fabrics, synthetic fibers...
FEATURES
1) While the roll of sublimated fabric is being fed onto the conveyor table, the vision system performs a fast scan on the fly of the printed contour and automatically creates a vector file. It optimizes the use of printed fabrics as the vision scanning technology scans the entire bed within 5 seconds before starting the cutting process.
2) Alternatively, the registration marks can be accurately read by the camera, allowing intelligent algorithm to compensate for any distortions or stretches that may occur in unstable rolls of textile.
3) In addition to the 2 overhead industrial cameras, a CCD camera can be mounted next to a laser head for the precise recognizing and cutting of small dye sublimated graphics such as twill letters/numbers/logos.
4) Independent dual laser heads cut their respective allocated areas simultaneously, high processing efficiency.
5) A conveyor bed and auto-feeder are used to keep cutting continuous, saving time and increasing production speed.
6) Extension table is conducive to pick up the cut pieces.
AUTO FEEDING CONVEYOR TABLE
It is a feeding unit which runs synchronous with the laser cutter. the feeder will transfer the roll materials to the cutting table after you put the rolls on the feeder. You can set the different feeding speeds according to the main machine speed. The feeder has the sensor to ensure accurate positioning of the material. The feeder can be equipped with different shaft diameters for different rolls. The different pneumatic roller will be used for the textiles with different tension, thickness... This unit helps you to realize a completely automated cutting process.

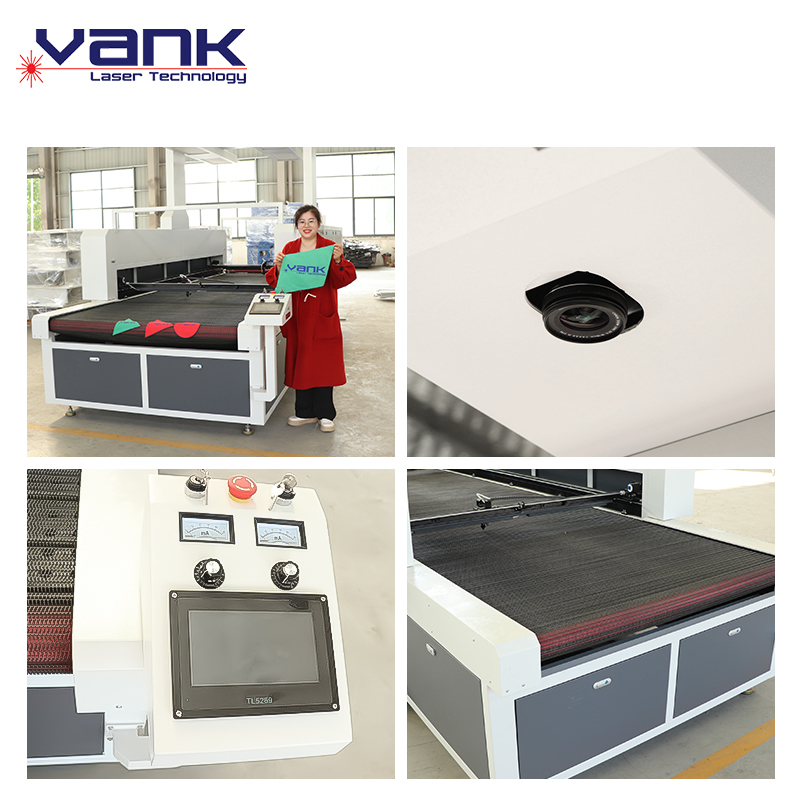

VISION SYSTEM(TOP CANON CAMERA)
The vision system is an important option when you want to cut the contours. No matter for printing contour or embroidery contour, you will need this device to read the contour or special data for positioning and cutting. Contour scanning and marks scanning are suitable for different application. We offer different vision options for different applications.
APPLICATIONS
A. Clothing Textiles: fabrics and technical textiles for clothing applications.
B. Home Textiles: carpets, mattress, sofas, armchairs, curtains, cushion materials, pillows, floor and wall coverings, textile wallpaper, etc.
C. Industrial Textiles: filtration, air dispersion ducts, etc.
D. Textiles used in automotive and aerospace: aircraft carpets, cat mats, seat covers, seat belts, airbags, etc.
E. Outdoors and Sports textiles: sports equipment, flying and sailing sports, canvas covers, marquee tents, parachutes, paragliding, kitesurf, etc.
F. Protective textiles: insulation materials, bulletproof vests, etc.
APPLICABLE MATERIALS
Polyester, nylon, nonwoven and woven fabrics, synthetic fibers, PES, polypropylene (PP), polyamide (PA), glass fiber (or glass fibre, fiberglass, fibreglass), Kevlar, aramid, Lycra, polyester PET, PTFE, paper, foam, cotton, plastic, viscose, felts, knitted fabrics, 3D spacer fabrics, carbon fibers, cordura fabrics, UHMWPE, sail cloth, microfiber, spandex fabric, etc.
Fabric Laser Cutting Machine characteristics:
1）This laser cutting machine delivers fast and extremely accurate processing thanks to its high-quality components. Very dependable and maintenance free.
2）This laser machine comes with conveyor system. The machine feeds the material automatically in a continuous cycle in synchronism with the conveyor bed eliminating downtime completely to achieve the maximum productivity possible.
3）The vacuum conveyor worktable has the function of negative pressure adsorption to ensure the flatness of the fabric during laser cutting.
4）Automatic feeder with deviation correction function (optional) to ensure accurate feeding.
5）The unique manual and automatic interactive nesting software function can improve the fabric utilization to the extreme.
6）Along with the exhaust system, the laser head and the exhaust system synchronize; good exhaust effect, to ensure that dust dose not pollute the materials.
7）It is possible to complete entire format cutting of the extra-long layout with a single layout length that exceeds the cut format.
8）Along with the exhaust system, the laser head and the exhaust system synchronize; good exhaust effect, to ensure that dust dose not pollute the materials.
Anhui Codos Laser Technology Development Co., Ltd. is a high-tech enterprise with years of experience in R&D, production, sales and technical maintenance in the laser equipment industry. With the professional laser technology as the backing, the company constantly absorbs advanced technology and design concept, and produces and sells laser equipment suitable for various industrial automation production needs.Our company's main products are optical fiber laser cutting machine, fiber laser marking machine, CO2 laser engraving&cutting machine. All products through the CE certification, safe and reliable product quality. In addition to providing standardized products for our customers, we can also provide customized solutions to meet the needs of different customers.Our laser equipment are widely used in industries of electronic, medical, sheet metal, furniture, advertising, craft gifts, architectural model, industrial mold, luxury, decoration, identification, clothing, leather and other industries.We make the high quality advanced machines, we are providing the best after-sale service in China. And we are also offering the most competitive price to all of the customers. "VANK" is known by more and more people. At present, our products have been exported to many countries and regions such as Europe, South America, North America and so on. We have enjoyed the mutual benefit and will move on, and we hope to establish a long term business relations with more and more oversea customers.
